Component Location

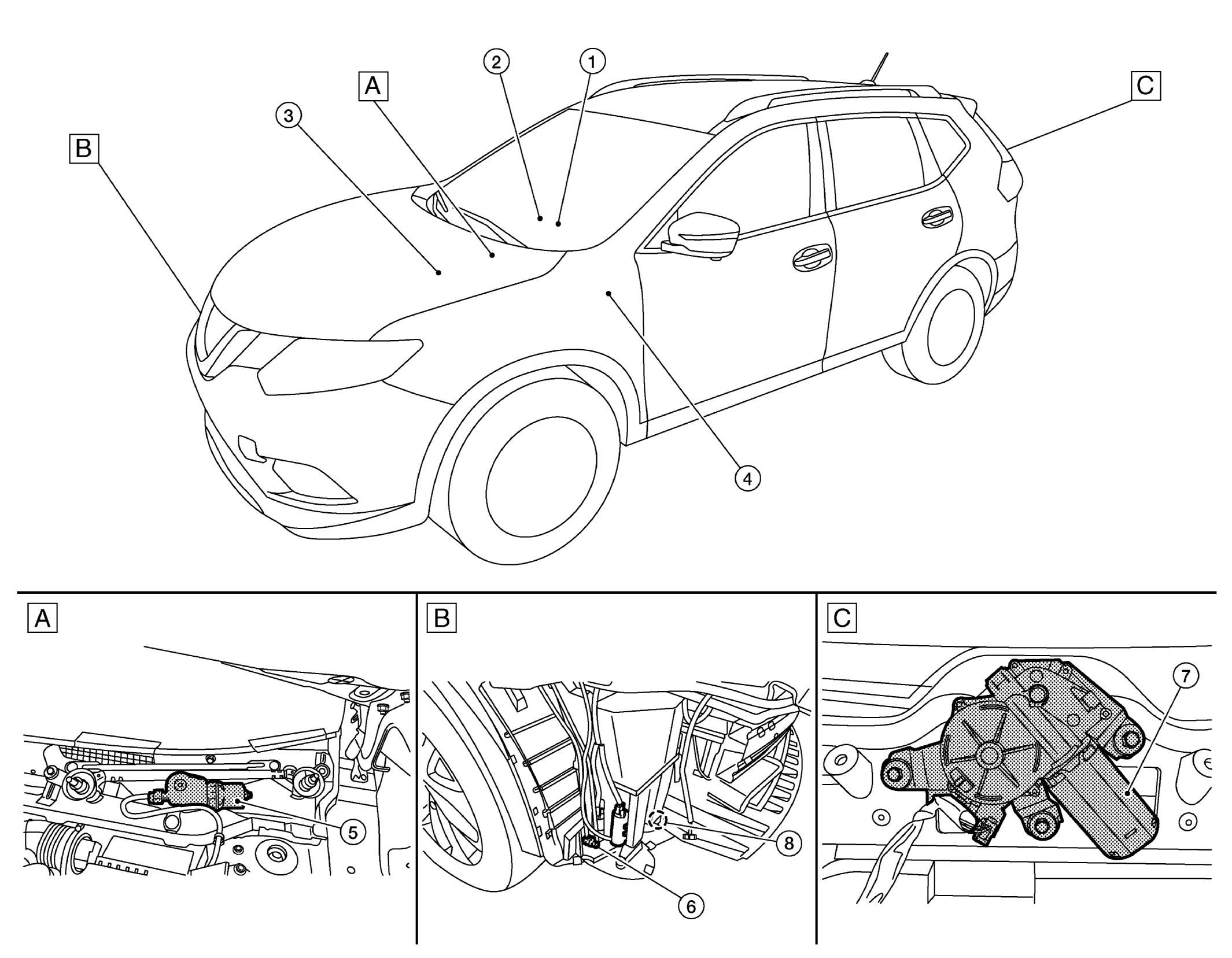

GNSALLIA1540ZZ-540Courtesy of NISSAN NORTH AMERICA, INC.
A. View of cowl area (with cowl top cover removed) B. RH front of vehicle (with front bumper fascia removed) C. View with back door finisher removed
No. Component Function
1. Combination switch
(Wiper and washer switch)		 Refer to SYSTEM DESCRIPTION .
Refer to REMOVAL AND INSTALLATION .
2. Combination meter Transmits the vehicle speed signal to BCM via CAN communication.
3. IPDM E/R
  • Controls the integrated relay according to the request (via CAN communication) from BCM.
  • Performs the auto stop control of the front wiper.
Refer to COMPONENT LOCATION .
4. BCM
  • Judges each switch status by the combination switch reading function.
  • Requests (via CAN communication) the front wiper relay and the front wiper HI/LO relay ON to IPDM E/R.
  • Supplies power to the rear wiper motor.
  • Performs the auto stop control of the rear wiper.
Refer to COMPONENT LOCATION .
5. Front wiper motor Refer to FRONT WIPER MOTOR .
6. Front and rear washer
motor		 Refer to WASHER PUMP .
7. Rear wiper motor Refer to REAR WIPER MOTOR .
8. Washer fluid level switch Transmits the washer fluid level switch signal to the combination meter.
