Timing Belt Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following procedure is for installation of a used timing belt. If you are installing a new belt, refer to the timing belt replacement procedure (see TIMING BELT REPLACEMENT  ).
  1. Clean the timing belt pulleys, the timing belt guide plate, and the upper and lower covers.
  2. Set the timing belt drive pulley to top dead center (TDC) by aligning the TDC mark (A) on the tooth of the timing belt drive pulley with the pointer (B) on the oil pump.
    Fig 1: Aligning TDC Mark On Tooth Of Timing Belt Drive Pulley With Pointer On Oil Pump
    G08052137Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Set the camshaft pulleys to TDC by aligning the TDC marks (A) on the camshaft pulleys with the pointers (B) on the back covers.

    FRONT

    Fig 2: Aligning TDC Marks On Camshaft Pulleys With Pointers On Back Covers (Front)
    G08052138Courtesy of AMERICAN HONDA MOTOR CO., INC.

    REAR

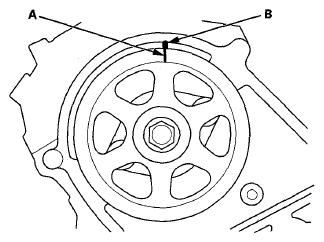

    Fig 3: Aligning TDC Marks On Camshaft Pulleys With Pointers On Back Covers (Rear)
    G08052139Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Loosely install the idler pulley with a new idler pulley bolt so the pulley can move but does not come off.
  5. If the auto-tensioner has extended and the timing belt cannot be installed, do the timing belt replacement procedure (see TIMING BELT REPLACEMENT  ).
  6. Install the timing belt in a counterclockwise sequence starting with the drive pulley. Take care not to damage the timing belt during installation.
    1. Drive pulley (A)
    2. Idler pulley (B)
    3. Front camshaft pulley (C)
    4. Water pump pulley (D)
    5. Rear camshaft pulley (E)
    6. Adjusting pulley (F)

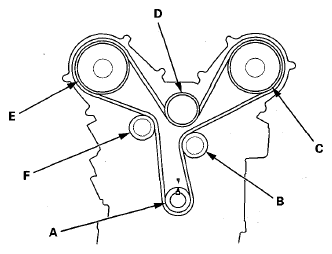

      Fig 4: Timing Belt Routing Diagram
      G08052140Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install a new idler pulley bolt and tighten it to the specified torque.

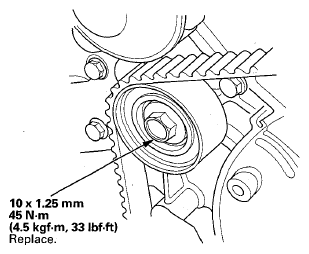

    Fig 5: Idler Pulley Bolt With Torque Specifications
    G08052141Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the battery clamp bolt from the back cover.

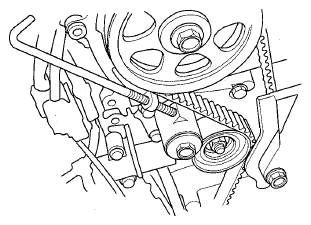

    Fig 6: Identifying Battery Clamp Bolt
    G08052142Courtesy of AMERICAN HONDA MOTOR CO., INC.

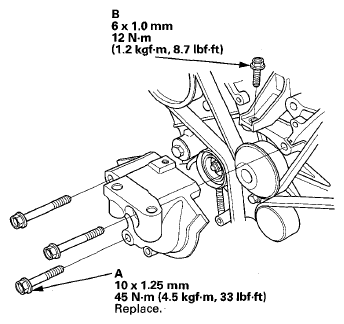

  9. Install the lower half of the side engine mount bracket using new bolts (A) and the bolt (B).
    Fig 7: Side Engine Mount Bracket Mounting Bolts With Torque Specifications
    G08052143Courtesy of AMERICAN HONDA MOTOR CO., INC.

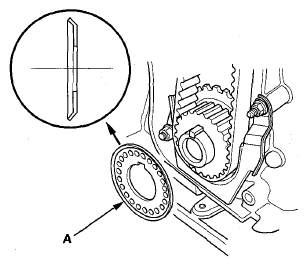

  10. Install the timing belt guide plate (A) as shown.
    Fig 8: Identifying Timing Belt Guide Plate Installation Position
    G08052144Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the lower cover.

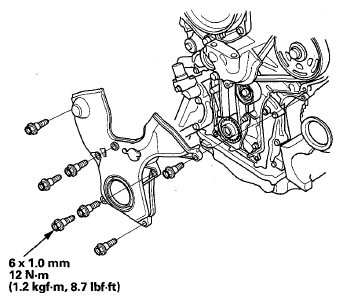

    Fig 9: Lower Cover And Mounting Bolts With Torque Specifications
    G08052145Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Install the front upper cover (A) and the rear upper cover (B).

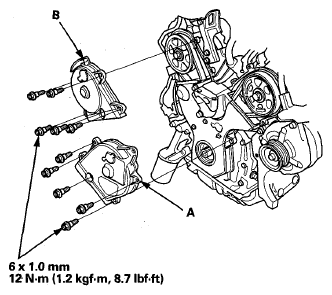

    Fig 10: Front Upper Cover, Rear Upper Cover And Mounting Bolts With Torque Specifications
    G08052146Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Install the crankshaft pulley (see CRANKSHAFT PULLEY REMOVAL AND INSTALLATION  ).
  14. Rotate the crankshaft pulley about six turns clockwise so the timing belt positions itself on the pulleys.
  15. Turn the crankshaft pulley so its white mark (A) lines up with the pointer (B).
    NOTE: The other pointer (C) is not used.

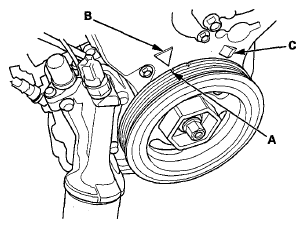

    Fig 11: Identifying Pointer And Crankshaft White Mark
    G08052147Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Check the camshaft pulley marks.
    NOTE: If the marks are not aligned, rotate the crankshaft 360 degrees, and recheck the camshaft pulley mark.
    • If the camshaft pulley marks are at TDC, go to step 17.
    • If the camshaft pulley marks are not at TDC, remove the timing belt and repeat steps  2 through  16.

    FRONT

    Fig 12: Identifying Camshaft Pulley Marks At TDC Position (Front)
    G08052148Courtesy of AMERICAN HONDA MOTOR CO., INC.

    REAR

    Fig 13: Identifying Camshaft Pulley Marks At TDC Position (Rear)
    G08052149Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Loosely install the upper half of the side engine mount bracket (A) using new bolts, then install the ground cable (B).

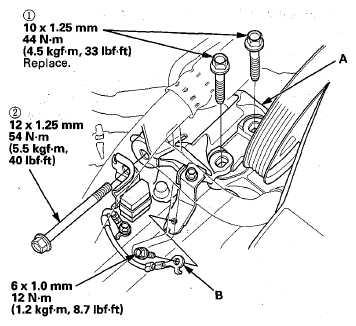

    Fig 14: Side Engine Mount, Ground Cable Bracket And Mounting Bolts With Torque Specifications
    G08052150Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Remove the jack and the wood block.
  19. Tighten the mounting bolts in the numbered sequence shown.
  20. Install the drive belt auto-tensioner (see DRIVE BELT AUTO-TENSIONER REPLACEMENT ).
  21. Install the splash shield (see SPLASH SHIELD REPLACEMENT ).
  22. Install the right front wheel.
  23. Do the CKP pattern clear/CKP pattern learn procedure (see HDS CLEAR COMMAND ).
