Splash Shield Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the splash shield (A).
1. Remove the clips (B) that secure the front inner fender (C) and the splash shield.
2. From under the front bumper (D), remove the clips (E).
3. From under the body, remove the clips (F) that secure the front undercover (G) and the splash shield, and remove the clips (H) that secure the splash shield on the front suspension subframe (I).
4. Pull the splash shield out.

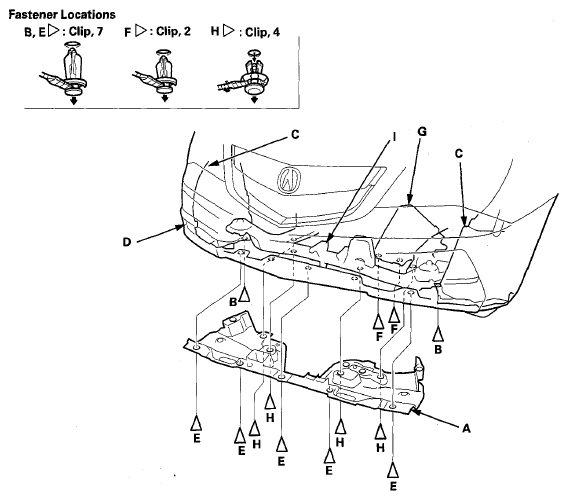

  Fig 1: Locating Splash Shield Clips
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the splash shield in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
