Drive Belt Auto-Tensioner Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt (see DRIVE BELT REPLACEMENT  ).
  2. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
  3. Remove the auto-tensioner.

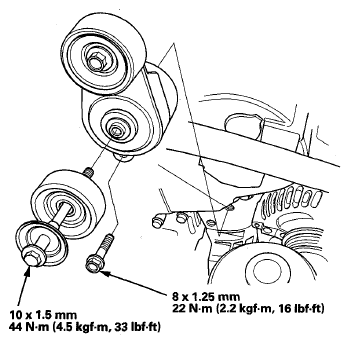

    Fig 1: Auto-Tensioner With Torque Specifications
    G08051986Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the auto-tensioner in the reverse order of removal.
