Cylinder Head Cover Removal: Rear

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold (see REMOVAL ).
  2. Remove the three ignition coils from the rear cylinder head (see IGNITION COIL AND SPARK PLUG REMOVAL/INSTALLATION ).
  3. Remove the harness holder mounting bolt (A) and the engine ground cable (B).
    Fig 1: Identifying Harness Holder Mounting Components
    G08052173Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the three injector connectors (C) and the two harness clamps (D).
  5. Remove the harness clamp (E) and disconnect the breather hose (F).
  6. Remove the harness (G) from the upper cover.
  7. Remove the engine hanger bracket (H).

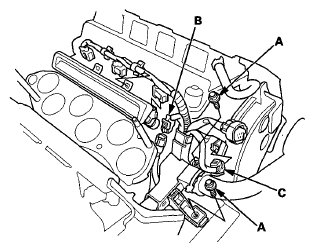

  8. Remove the harness holder mounting bolts (A) and disconnect the knock sensor connector (B) and the CMP sensor connector (C).
    Fig 2: Identifying Harness Holder Mounting Bolts, Knock Sensor Connector And CMP Sensor Connector
    G08052174Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Remove the rear cylinder head cover.
    Fig 3: Identifying Rear Cylinder Head Cover With Mounting Bolts
    G08052175Courtesy of AMERICAN HONDA MOTOR CO., INC.
