Ignition Coil and Spark Plug Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover (see step 6 under ENGINE REMOVAL ).
Disconnect the ignition coil connectors (A), then remove the ignition coils (B).

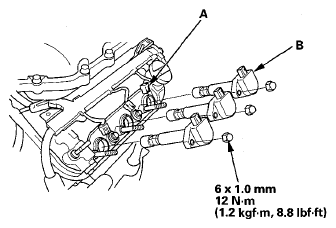

FRONT

Fig 1: Identifying Ignition Coil Connectors And Ignition Coils - Front
Courtesy of AMERICAN HONDA MOTOR CO., INC.

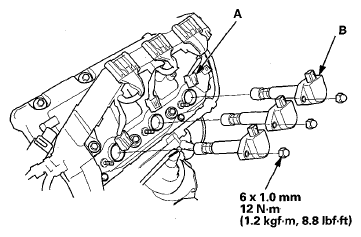

REAR

Fig 2: Identifying Ignition Coil Connectors And Ignition Coils - Rear
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the spark plugs and inspect them (see SPARK PLUG INSPECTION ).
Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger tight, then tighten the plugs to the specified torque.
Specified Torque:

22 N.m (2.2 kgf.m, 16 lbf.ft)
Install the ignition coils in the reverse order of removal.
