Intake Manifold Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover (see step 6 under ENGINE REMOVAL ).

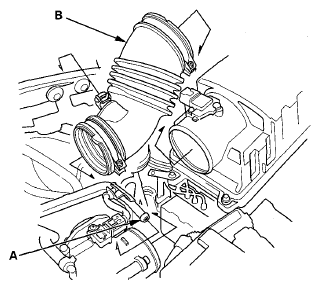

Disconnect the breather pipe (A).

Fig 1: Identifying Breather Pipe And Intake Air Duct
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake air duct (B).

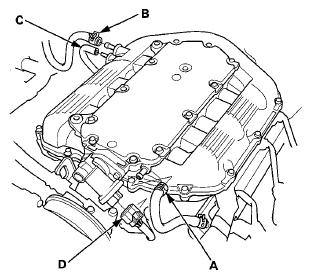

Disconnect the PCV hose (A), the brake booster vacuum hose (B), the vacuum hose (C), and the IMT actuator connector (D).

Fig 2: Identifying PCV Hose, Brake Booster Vacuum Hose, Vacuum Hose And IMT Actuator Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

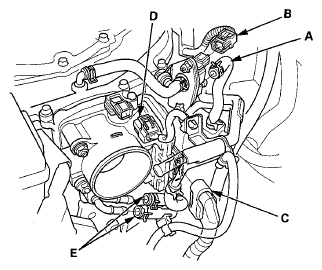

Disconnect the EVAP canister hose (A), the EVAP canister purge valve connector (B), the throttle actuator connector (C), and the MAP sensor connector (D).

Fig 3: Identifying EVAP Canister Hose, EVAP Canister Purge Valve Connector, Throttle Actuator Connector And MAP Sensor Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect and plug the water bypass hoses (E).

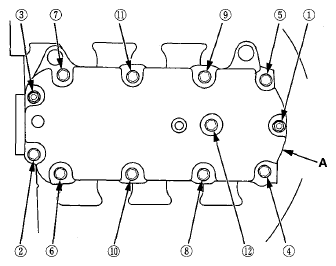

Remove the upper cover mounting bolts and nuts sequentially in three steps, then remove the upper cover (A).

Fig 4: Identifying Upper Cover Mounting Bolts And Nuts Loosening Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.

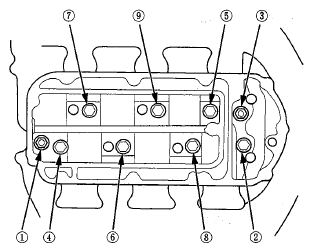

Remove the intake manifold mounting bolts and nuts sequentially in three steps.

Fig 5: Identifying Intake Manifold Mounting Bolts And Nuts Loosening Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake manifold.
