Cylinder Head Cover Removal: Front

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold (see REMOVAL ).
  2. Remove the three ignition coils from the front cylinder head (see IGNITION COIL AND SPARK PLUG REMOVAL/INSTALLATION ).
  3. Disconnect the EGR valve connector (A) and remove the harness holder mounting bolt (B) and the harness clamp (C).

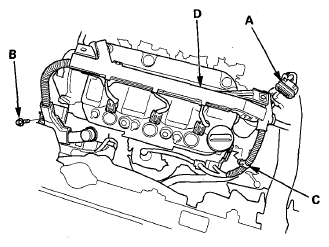

    Fig 1: Identifying EGR Valve Connector, Harness Holder Mounting Bolt And Harness Clamp
    G08052171Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the harness holder (D) from the bracket.
  5. Remove the front cylinder head cover.
    Fig 2: Identifying Front Cylinder Head Cover With Mounting Bolts
    G08052172Courtesy of AMERICAN HONDA MOTOR CO., INC.
