Crankshaft Pulley Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on the lift.
  2. Remove the right front wheel.
  3. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
  4. Remove the drive belt (see DRIVE BELT REPLACEMENT ).

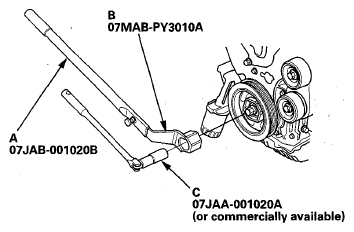

  5. Hold the pulley with the holder handle (A) and the holder attachment, 50 mm, offset (B).
    Fig 1: Holding Pulley With Holder Handle And Holder Attachment
    G08052122Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the bolt with a heavy duty 19 mm socket (C) and a breaker bar, then remove the crankshaft pulley.
