Crankshaft Pulley Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove any oil and clean the pulleys (A), the crankshaft (B), the bolt (C), and the washer (D). Lubricate with new engine oil as shown.

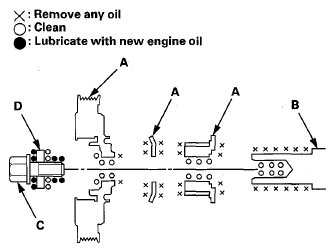

Fig 1: Identifying Pulleys, Crankshaft, Bolt And Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the crankshaft pulley, and tighten the bolt. Do not use an impact wrench.
1. Hold the pulley with the handle (A) and the holder attachment (B). Torque the bolt to 65 N.m (6.5 kgf.m, 47 lbf.ft) with a torque wrench and a 19 mm socket (C).
2. Tighten the bolt an additional 60 °.

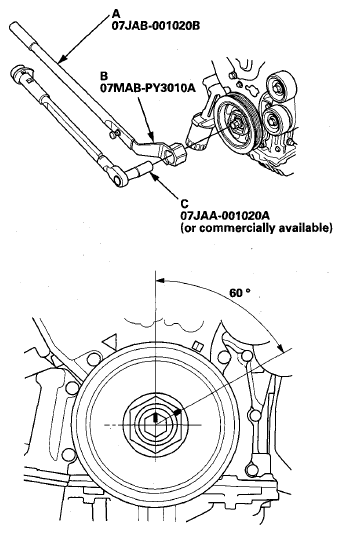

  Fig 2: Holding Pulley With Holder Handle And Holder Attachment
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the drive belt (see DRIVE BELT REPLACEMENT ).
Install the splash shield (see SPLASH SHIELD REPLACEMENT ).
Install the right front wheel.
