Fuel Tank Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING  ).
  2. Drain the fuel tank (see FUEL TANK DRAINING  ), then reinstall the fuel tank unit without connecting the fuel tank unit 4P connector and the fuel tank unit quick-connect fitting.
  3. Raise the vehicle on a lift.
  4. Remove the exhaust pipe (see EXHAUST PIPE AND MUFFLER REPLACEMENT ).
  5. Remove the propeller shaft (see PROPELLER SHAFT REMOVAL ).
  6. Remove the EVAP canister cover (A) and fuel tank protector (B).

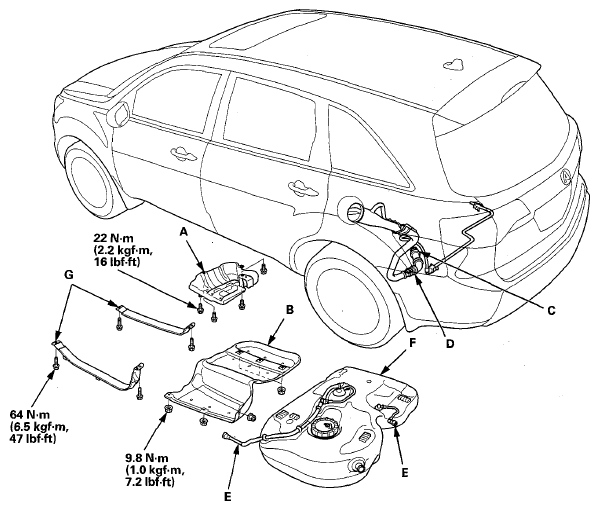

    Fig 1: Fuel Tank Related Replacement Components With Torque Specifications
    G08052586Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Loosen the clamp (C), and disconnect the tube (D). Slide back the clamps, then twist the hoses as you pull to avoid damaging them.
  8. Disconnect the hoses (E).
  9. Place a jack or other support under the fuel tank (F).
  10. Remove the strap bolts and the straps (G).
  11. Remove the fuel tank.
  12. Install the parts in the reverse order of removal.

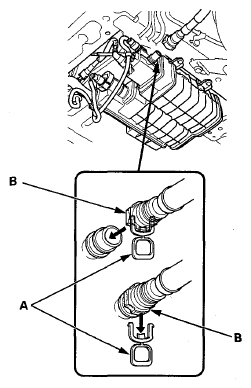

    Fig 2: Pulling Ring And Fuel Vapor Hose Connector
    G08052587Courtesy of AMERICAN HONDA MOTOR CO., INC.
    NOTE:
    • New fuel tanks have a ring pull (A) at the fuel vapor hose connector (B). When you connect the hose and confirm that connection is secure, remove the ring pull by pulling it down.
    • Before connecting the fuel fill pipe and the quick-connect fitting, check for dirt, and clean it if needed, taking care not to damage the fuel fill pipe and other parts.
