Exhaust Pipe and Muffler Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use new gaskets and self-locking nuts when reassembling.

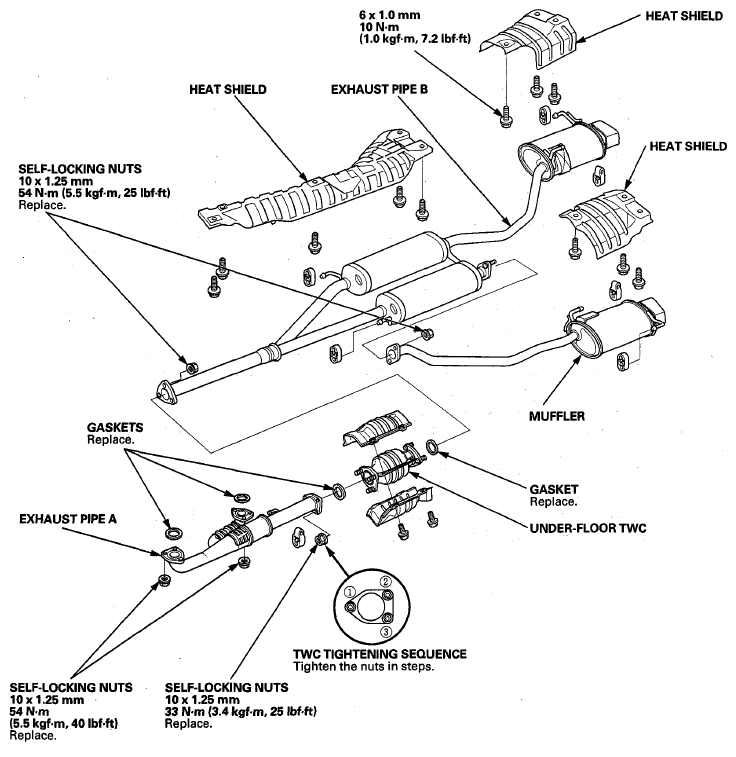

Fig 1: Exploded View Of Exhaust Pipe And Muffler
G08052378Courtesy of AMERICAN HONDA MOTOR CO., INC.
