Propeller Shaft Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the propeller shaft protector (A).

Fig 1: Propeller Shaft Protector And Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

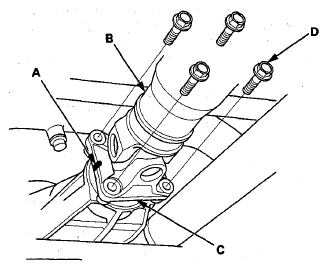

Make reference mark (A) across the No. 1 propeller shaft (B) and the transfer companion flange (C).

Fig 2: Reference Mark, No. 1 Propeller Shaft, Transfer Companion Flange And Flange Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the flange bolts (D).
Remove the center support bearing mounting bolts (A).

Fig 3: Identifying Center Support Bearing Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

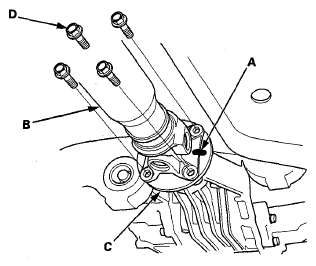

Make reference mark (A) across the No. 2 propeller shaft (B) and the rear differential companion flange (C).

Fig 4: Locating No. 2 Propeller Shaft Reference Mark With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the flange bolts (D).
