Injector Base Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
  2. Remove the drive belt (see DRIVE BELT REPLACEMENT ).
  3. Remove the power steering pump and the power steering hose bracket (see PUMP REPLACEMENT ).
  4. Remove the intake manifold (see REMOVAL  ).
  5. Remove the injectors (see INJECTOR REPLACEMENT ).
  6. Remove the harness holder mounting bolt (A) and disconnect the knock sensor connector (B).

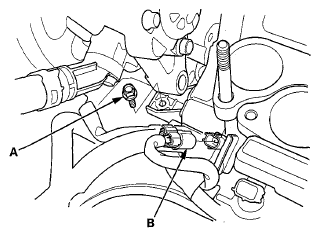

    Fig 1: Identifying Harness Holder Mounting Bolt And Knock Sensor Connector
    G08052374Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the injector base mounting bolts/nuts (A), then remove the front injector base (B) and rear injector base (C).

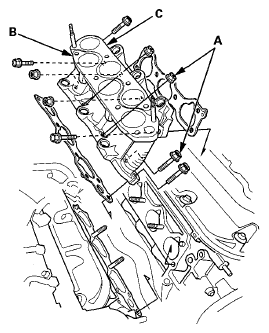

    Fig 2: Identifying Injector Base Mounting Bolts/Nuts, Front Injector Base And Rear Injector Base
    G08052375Courtesy of AMERICAN HONDA MOTOR CO., INC.
