Valve Body Valve Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Coat all parts with ATF before assembly.
Install the valves and springs in the sequence shown for the main valve body (see MAIN VALVE BODY DISASSEMBLY, INSPECTION, AND REASSEMBLY ), the regulator valve body (see REGULATOR VALVE BODY DISASSEMBLY, INSPECTION, AND REASSEMBLY ), and the servo body (see SERVO BODY DISASSEMBLY, INSPECTION, AND REASSEMBLY ). Refer to the following valve cap illustrations, and install each valve cap so the end shown facing up will be facing the outside of the valve body, then secure the valve cap with the valve cap clip.

Fig 1: Identifying Valves And Springs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

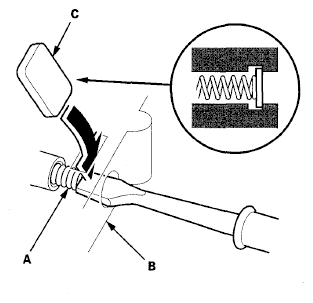

Install the valve and the valve spring (A) in the valve body (B). Push the valve spring in with a screwdriver, then install the spring seat (C).

Fig 2: Installing Valve And Valve Spring In Valve Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.
