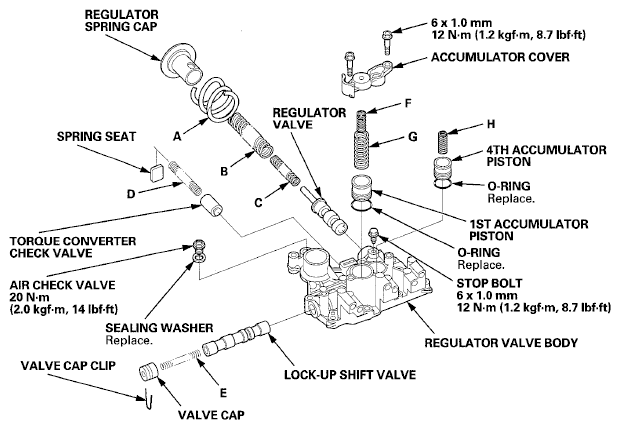

Regulator Valve Body Disassembly, Inspection, and Reassembly
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
- Clean all parts thoroughly in solvent, and dry them with compressed air. Blow out all passages except the air check valve filter.
- Inspect the regulator valve body for scoring and damage.
- Hold the regulator spring cap in place while removing the stop bolt. The regulator spring cap is spring loaded. Once the stop bolt is removed, release the spring cap slowly so it does not pop out.
- Check all valves for free movement. If any fail to slide freely, refer to valve body repair (see VALVE BODY REPAIR ).
- Check the air check valve filter for clogging. If the filter is clogged, remove the air check valve, and clean the filter thoroughly by pouring clean ATF. Do not blow out the filter with compressed air. Replace the air check valve, if the filter or the check valve (ball) is clogged or damaged.
- Coat all parts with ATF during assembly.
- Align the hole in the regulator spring cap with the stop bolt hole, then press the spring cap into the valve body, and install the stop bolt.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
VALVE SPRING SPECIFICATIONS
VALVE SPRING SPECIFICATIONSValve Springs Standard (New)-Unit: mm (in) Wire Diameter O.D. Free Length No. of Coils A Stator reaction spring 4.5(0.177) 35.4(1.394) 30.3(1.193) 1.92 B Regulator valve spring A 1.9(0.075) 14.7(0.579) 80.6(3.173) 16.1 C Regulator valve spring B 1.6(0.063) 9.2 (0.362) 44.0(1.732) 12.5 D Torque converter check valve spring 1.2 (0.047) 8.6 (0.339) 33.8(1.331) 12.2 E Lock-up shift valve spring 1.0 (0.039) 6.6 (0.260) 35.5(1.398) 18.2 F 1st accumulator spring B 2.4 (0.094) 12.2(0.480) 35.0(1.378) 7.7 G 1st accumulator spring A 2.4 (0.094) 18.6(0.732) 50.1 (1.972) 6.7 H 4th accumulator spring 2.5 (0.098) 14.6(0.575) 29.9(1.177) 4.9
