Servo Body Disassembly, inspection, and Reassembly

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean all parts thoroughly in solvent, and dry them with compressed air. Blow out all passages.
  2. Inspect the servo body for scoring and damage.
  3. Check all valves for free movement. If any fail to slide freely, refer to valve body repair (see VALVE BODY REPAIR ).
  4. Coat all parts with ATF during assembly.

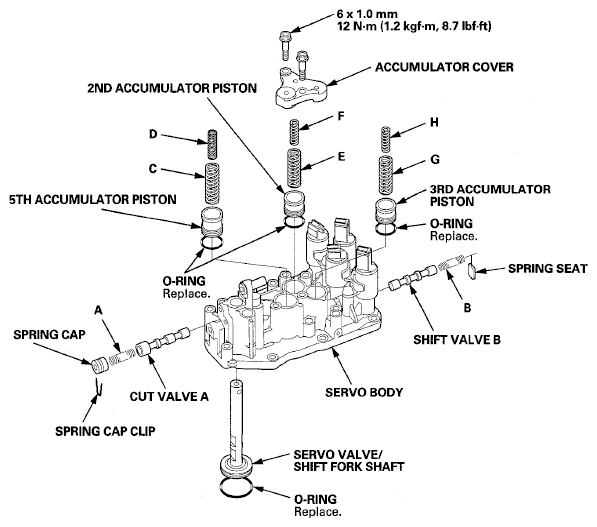

    Fig 1: Exploded View Of Servo Body Components With Torque Specifications
    G06768640Courtesy of AMERICAN HONDA MOTOR CO., INC.

    VALVE SPRINGS SPECIFICATIONS

    VALVE SPRING SPECIFICATIONS

    Valve Springs Standard (New)-Unit: mm (in)
    Wire Diameter O.D. Free Length No. of Coils
    A Cut valve A spring 0.9 (0.035) 9.9 (0.390) 22.3 (0.878) 6.9
    B Shift valve B spring 0.8(0.031) 7.1 (0.280) 23.7 (0.933) 9.7
    C 5th accumulator spring A 2.5 (0.098) 16.6(0.654) 46.9(1.846) 7.8
    D 5th accumulator spring B 1.9(0.075) 10.0(0.394) 38.5(1.516) 10.6
    E 2nd accumulator spring A 1.8(0.071) 14.6(0.575) 43.8(1.724) 7.9
    F 2nd accumulator spring B 1.85 (0.073) 9.4 (0.370) 32.5(1.280) 8.7
    G 3rd accumulator spring A 1.8(0.071) 14.6(0.575) 43.8(1.724) 7.9
    H 3rd accumulator spring B 1.85(0.073) 9.4 (0.370) 32.5(1.280) 8.7
