Oil Pump Overhaul: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood, and secure it with the hood support rod (A) in the wide-open position (B).
    Fig 1: Identifying Hood Support Rod In Wide-Open Position
    G05952353Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Drain the engine oil (see ENGINE OIL REPLACEMENT ).
  3. Remove the under-cowl panel (see UNDER-COWL PANEL REPLACEMENT ).
  4. Support the engine with a jack and a wood block under the oil pan.
  5. Remove the cam chain (see CAM CHAIN REMOVAL ).
  6. Remove the alternator mounting bolt, then install the support eyelet.
    Fig 2: Identifying Support Eyelet (07AAK-SNAA600)
    G05952672Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the engine support hanger (AAR-T1256) onto the vehicle, and attach the hook (A) to the support eyelet (B). Tighten the wing nut (C) by hand, and lift and support the engine/transmission.
    NOTE: Be careful when working around the windshield.

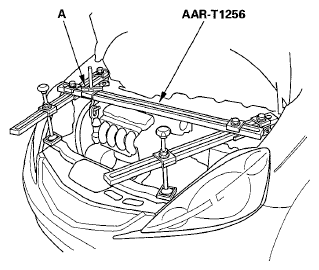

    Fig 3: Identifying Reds Engine Support Hanger (AAR-T1256) On Engine
    G05952673Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the jack and the wood block from under the oil pan.
  9. Remove the oil pan (see OIL PAN REMOVAL ).
  10. Remove the oil screen (A), then remove the oil pump (B).

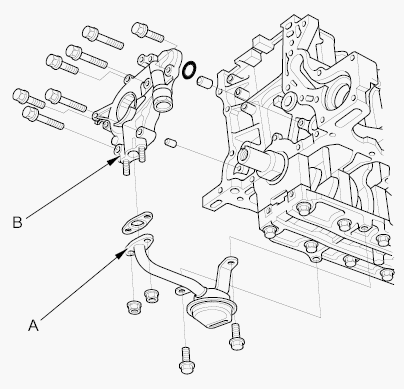

    Fig 4: Identifying Oil Screen, Oil Pump, O-Ring And Fasteners
    G00504604Courtesy of AMERICAN HONDA MOTOR CO., INC.
