Cam Chain Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Keep the cam chain away from magnetic fields.
  1. Turn the crankshaft pulley so its top dead center (TDC) mark (A) lines up with the pointer (B).
    Fig 1: Identifying Crankshaft Pulley At Top Dead Center (TDC)
    G00504595Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL  ).
  3. Check the No. 1 piston at TDC. The "UP" mark (A) on the camshaft sprocket should be at the top, and the TDC grooves (B) on the camshaft sprocket should line up with the top edge of the head.
    Fig 2: Identifying UP Mark On Camshaft Sprocket
    G05952468Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the right front wheel.
  5. Remove the splash shield.
  6. Loosen the water pump pulley mounting bolts (A). (See Fig 3)
  7. Remove the drive belt (see DRIVE BELT REMOVAL/INSTALLATION ).
  8. Remove the water pump pulley (B).
    Fig 3: Identifying Water Pump Pulley And Mounting Bolts
    G00504596Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Remove the crankshaft pulley (see CRANKSHAFT PULLEY REMOVAL AND INSTALLATION  ).
  10. Remove the drive belt auto-tensioner (see DRIVE BELT AUTO-TENSIONER REMOVAL/INSTALLATION ).
  11. Support the engine with a jack and a wood block under the oil pan.
  12. Remove the ground cable (A), then remove the side engine mount/bracket assembly (B).

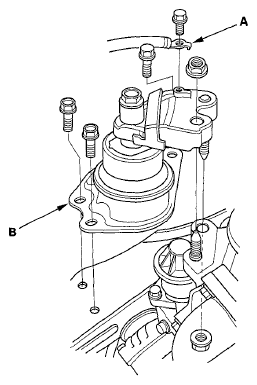

    Fig 4: Identifying Ground Cable & Side Engine Mount/Bracket Assembly
    G05952470Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Remove the chain case.

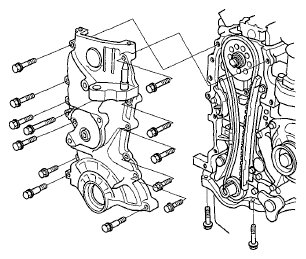

    Fig 5: Identifying Chain Case
    G05952471Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Measure the cam chain separation. If the distance is less than the service limit, replace the cam chain and cam chain tensioner.

    Standard Distance: 19 mm (0.75 in.)

    Service Limit: 15 mm (0.59 in.)

    Fig 6: Identifying Distance Between Cam Chain & Tensioner
    G05952472Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Apply new engine oil to the sliding surface of the cam chain tensioner slider (A).
    Fig 7: Identifying Cam Chain Tensioner Slider & Bolt
    G05952473Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Hold the cam chain tensioner slider with the screwdriver, then remove the bolt (B), and loosen the bolt (C).
  17. Remove the cam chain tensioner slider.
    Fig 8: Identifying Cam Chain Tensioner Slider
    G05952474Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Remove the cam chain tensioner (A) and the cam chain guide (B).
    Fig 9: Identifying Cam Chain Tensioner, Cam Chain Guide And Cam Chain
    G05952475Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Remove the cam chain.
