Rear Door Sash Outer Trim Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the door or related parts.

Remove these items:
- Rear door rear sash trim (see REAR DOOR REAR SASH TRIM REPLACEMENT ).
- Rear door glass outer weatherstrip (see REAR DOOR GLASS OUTER WEATHERSTRIP REPLACEMENT ).
Remove the screw from inside the door.

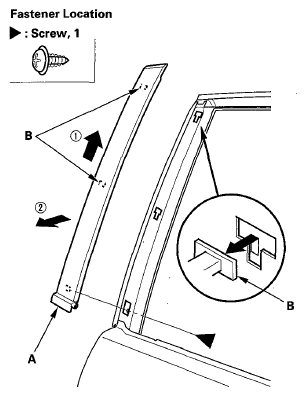

Fig 1: Identifying Rear Door Sash Outer Trim Hooks & Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the rear door sash outer trim (A) up to release the hooks (B) from the door, then remove the trim.
Install the trim in the reverse order of removal.
