Rear Door Rear Sash Trim Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the door or related parts.
  1. Remove the door quarter inner trim (see step  1 ).
  2. Remove the screw securing the trim to the door quarter.

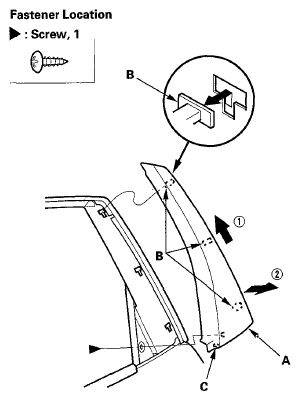

    Fig 1: Identifying Rear Sash Trim Hooks & Screws
    G05959403Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Pull up the door rear sash trim (A) to release the hooks (B, C), then remove it from the door.
  4. Install the trim in the reverse order of removal.
