Rear Door Glass Outer Weatherstrip Replacement
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the door or related parts.
- Remove the rear door rear sash trim (see REAR DOOR REAR SASH TRIM REPLACEMENT ).

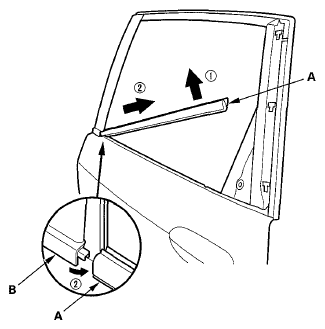

- While lifting the rear of the door glass outer weatherstrip (A), slide the weatherstrip rearward to release the front edge of the weatherstrip from the door sash outer trim (B), then remove the weatherstrip.
- Install the weatherstrip in the reverse order of removal, and note these items:
- Push the weatherstrip into place securely.
- Make sure that there is no clearance between the front edge of the weatherstrip and the door sash outer trim.
