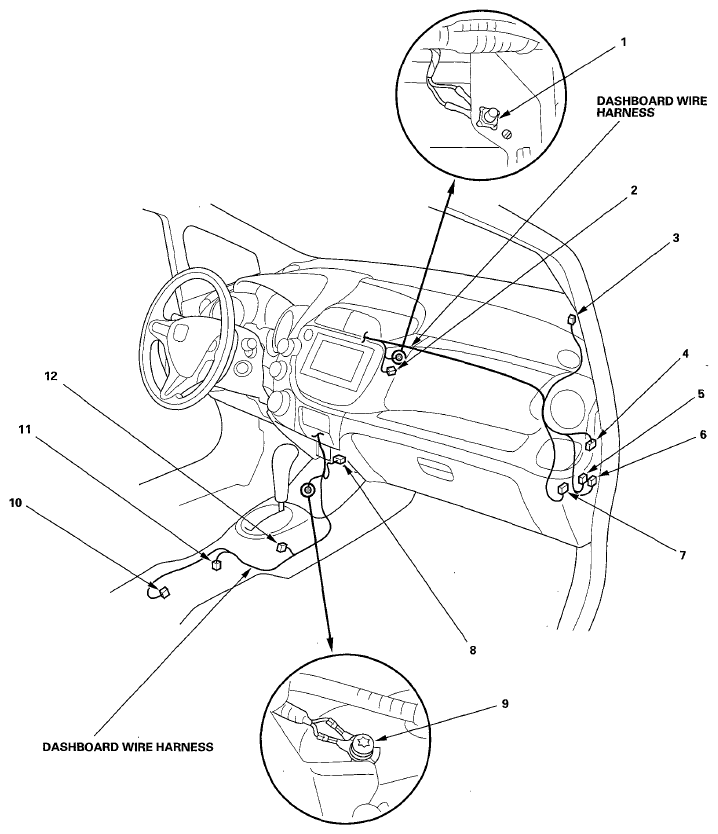

Dashboard Wire Harness (View of passenger's side) (With Navigation)
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Dashboard Wire Harness (View of passenger's side) (With Navigation)
DASHBOARD WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| A/T gear position indicator panel | 12 | 6 | Under center console | - | A/T |
| light/park-pin switch | - | - | - | - | - |
| Front passenger's airbag inflator | 2 | 4 | Under right side of dash | - | - |
| Fuel tank unit | 11 | 4 | Under center console | - | - |
| Parking brake switch | 10 | 1 | Under center console | - | - |
| Right tweeter | 3 | 2 | Right side of dash | - | With tweeter |
| SRS unit connector A | 8 | 39 | Under middle of dash | - | - |
| USB adapter unit | 7 | 14 | Under right side of dash | - | - |
| C201 | 6 | 13 | Under right side of dash | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) | - |
| C202 | 5 | 4 | Under right side of dash | Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) | - |
| C761 | 4 | 13 | Under right side of dash | Front passenger's door wire harness (see FRONT PASSENGER'S DOOR WIRE HARNESS ) | - |
| G503 | 1 | - | Under middle of dash | Body ground, via dashboard wire harness | - |
| G504 | 9 | - | Under center console | Body ground, via dashboard wire harness | - |
