Floor Wire Harness (Right branch)
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

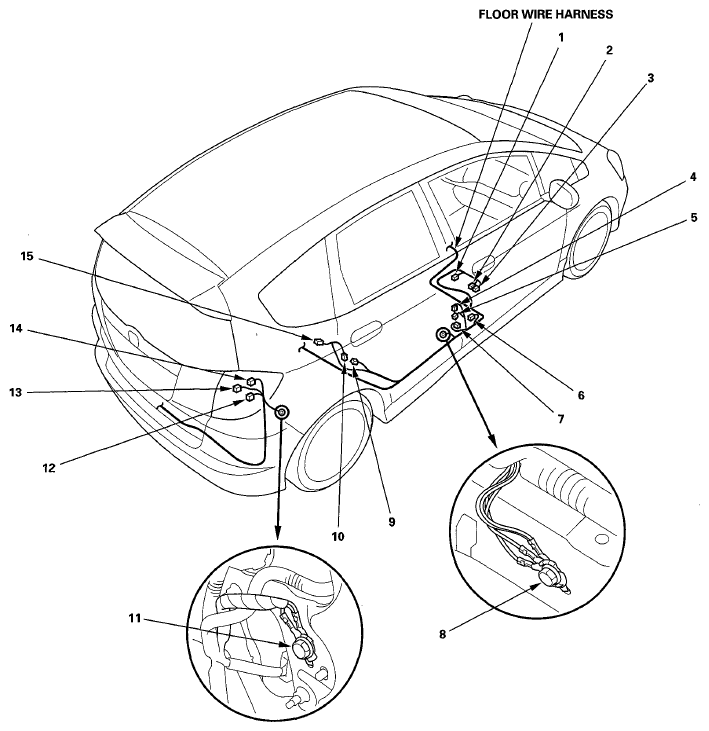

Floor Wire Harness (Right branch)
FLOOR WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Front passenger's door switch | 5 | 1 | Right B-pillar | - | - |
| Front passenger's seat belt buckle switch | 1 | 2 | Under front passenger's seat | - | - |
| Front passenger's seat belt tensioner | 7 | 4 | Right B-pillar | - | - |
| Front passenger's side airbag inflator | 3 | 2 | Under front passenger's seat | - | - |
| Right back-up light | 14 | 2 | Behind right taillight | - | - |
| Right rear door switch | 10 | 1 | Right C-pillar | - | - |
| Right side curtain airbag inflator | 15 | 2 | Right C-pillar | - | - |
| Right side impact sensor (first) | 6 | 4 | Right B-pillar | - | - |
| Right side impact sensor (second) | 9 | 2 | Right C-pillar | - | - |
| Right taillight/brake light | 13 | 4 | Behind right taillight | - | - |
| Right turn signal light | 12 | 3 | Behind right taillight | - | - |
| C603 | 2 | 4 | Under front passenger's seat | ODS unit harness (see ODS UNIT HARNESS ) | - |
| C781 | 4 | 18 | Right C-pillar | Right rear door wire harness (see RIGHT REAR DOOR WIRE HARNESS ) | - |
| G603 | 8 | - | Right side of floor | Body ground, via floor wire harness | - |
| G604 | 11 | - | Behind right taillight | Body around, via floor wire harness | - |
