Right Rear Door Wire Harness
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Right Rear Door Wire Harness

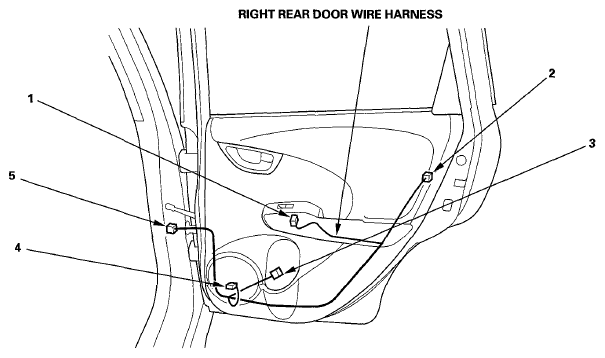

RIGHT REAR DOOR WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Right rear door lock actuator/knob switch | 2 | 10 | Right rear door | - | With power door locks |
| Right rear door speaker | 4 | 2 | Right rear door | - | - |
| Right rear power window motor | 3 | 2 | Right rear door | - | - |
| Right rear power window switch | 1 | 5 | Right rear door | - | - |
| C781 | 5 | 18 | Right B-pillar | Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) | - |
