ODS Unit Harness
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
ODS Unit Harness

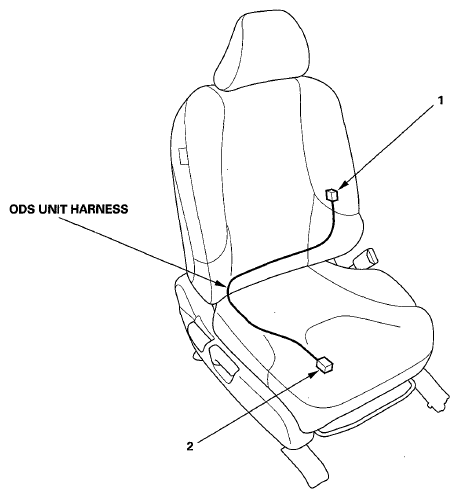

ODS UNIT HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| ODS unit | 1 | 4 | Right side of front passenger's seat | - | - |
| C603 | 2 | 4 | Under front passenger's seat | Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) | - |
