Front Passenger's Door Wire Harness

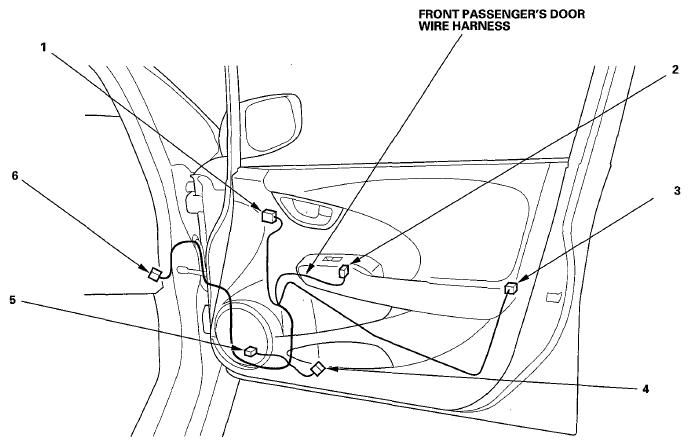

FRONT PASSENGER'S DOOR WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Front passenger's door lock actuator/knob switch | 3 | 10 | Front passenger's door | - | With power door locks |
| Front passenger's door speaker | 5 | 2 | Front passenger's door | - | - |
| Front passenger's power window motor | 4 | 2 | Front passenger's door | - | - |
| Front passenger's power window switch | 2 | 5 | Front passenger's door | - | - |
| Right power mirror | 1 | 6 | Front passenger's door | - | - |
| C761 | 6 | 13 | Under right side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF PASSENGER'S SIDE) (WITH NAVIGATION) ) | - |
