Disconnecting System Connectors

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to LOCK (0). Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.

    2. Driver's Airbag

  2. Remove the access panel (A) from the steering wheel, then disconnect the driver's airbag inflator 4P connector (B) on the cable reel harness.

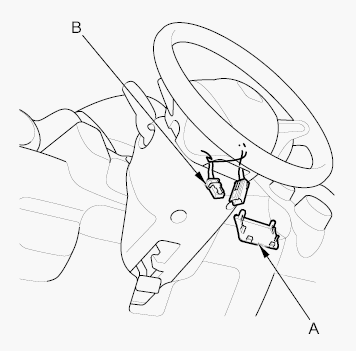

    3. Fig 1: Identifying Access Panel & Driver's Airbag 4P Connector
    G05960420Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Front Passenger's Airbag

  3. Remove glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
  4. Disconnect the front passenger's airbag inflator 4P connector (A) on the dashboard wire harness.

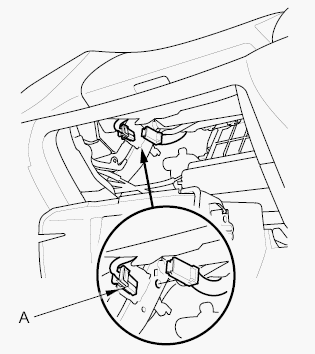

    5. Fig 2: Identifying Front Passenger's Airbag 4P Connector
    G05960421Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Side Airbag

  5. Disconnect the driver's and the front passenger's side airbag inflator 2P connector (A) on the floor wire harness.
    6. Fig 3: Identifying Driver's & Front Passenger's Side Airbag 2P Connectors
    G05960422Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Side Curtain Airbag

  6. Remove the quarter pillar trim (see QUARTER PILLAR TRIM ).
  7. Disconnect both floor wire harness 2P connectors (A) from the side curtain airbags (see SPRING-LOADED LOCK CONNECTOR ).
    8. Fig 4: Identifying Floor Wire Harness 2P Connectors
    G05960423Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Seat Belt Tensioner

  8. Remove the B-pillar lower trim (see B-PILLAR UPPER/LOWER TRIM ).
  9. Disconnect the driver's and the front passenger's seat belt tensioner 4P connector (A) on the floor wire harness.

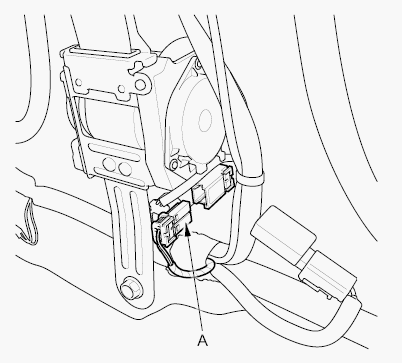

    10. Fig 5: Identifying Floor Wire Harness 4P Connectors
    G05960424Courtesy of AMERICAN HONDA MOTOR CO., INC.

    SRS Unit

  10. Remove the center lower cover (see DASHBOARD CENTER LOWER COVER REMOVAL/INSTALLATION ) and the heater joint duct (see step 5 on DASHBOARD/STEERING HANGER BEAM REMOVAL/INSTALLATION ).
  11. Disconnect SRS unit connector A (39P) and B (39P) from the SRS unit.

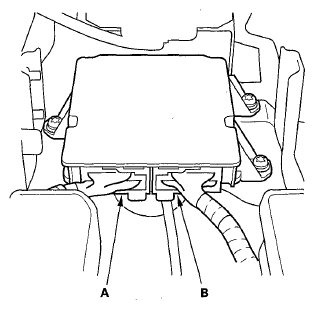

    Fig 6: Identifying SRS Unit Connector A (39P) & B (39P)
    G05960425Courtesy of AMERICAN HONDA MOTOR CO., INC.
