Glove Box Removal/Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES before doing repairs or service.

NOTE: Take care not to scratch the dashboard or its related parts.

Remove the passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
Remove the bolts.

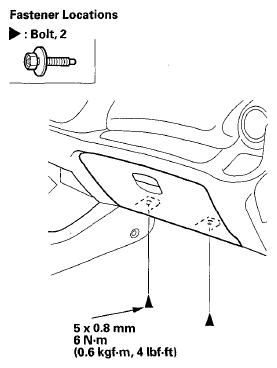

Fig 1: Passenger's Dashboard Undercover & Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
While holding the glove box (A), release the glove box stops (B) on each sides from the dashboard by pushing them inward, then lower the glove box.

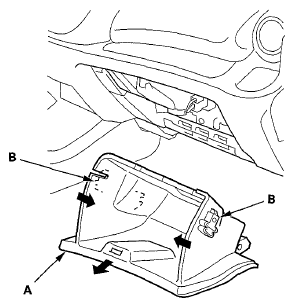

Fig 2: Releasing Glove Box Stops On Dashboard Sides
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the glove box in the reverse order of removal.
