Front Passenger's Airbag Replacement: Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.
  2. Remove these items:
  3. Remove the connector clip, then disconnect the front passenger's airbag 4P connector (A) from the dashboard wire harness (B).
    Fig 1: Identifying Front Passenger's Airbag & Dashboard Wire Harness 4P Connector
    G00491910Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the screw (A) from the passenger's lid.
    Fig 2: Identifying Passenger's Lid With Screw
    G05960592Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the three mounting bolts (B) from the bracket.
  6. Release the hooks (A) of the front passenger's lid (B) from the audio panel.
    Fig 3: Releasing Hooks Of Front Passenger's Lid From Audio Panel
    G05960593Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Pull up the front edges of the front passenger's lid to release the hooks (C).

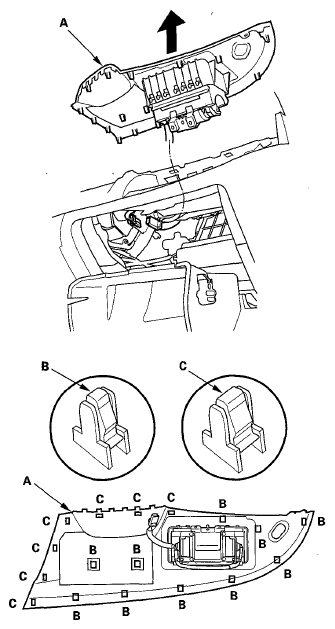

  8. Remove the front passenger's airbag assembly (A) out of the dashboard. If you are replacing only the front passenger's lid, go to step  9.
    NOTE: The front passenger's lid has pawls (B, C) on each side which attach it to the dashboard. Take care not to damage the front passenger's airbag
    Fig 4: Identifying Front Passenger's Lid Has Pawls & Airbag Assembly
    G05960594Courtesy of AMERICAN HONDA MOTOR CO., INC.

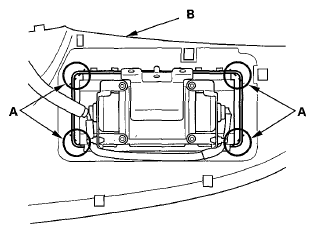

  9. Cut the four corners (A) of the front passenger's lid (B) as shown below, and remove the front passenger's airbag.
    Fig 5: Identifying Front Passenger's Lid
    G05960595Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE:
  • Always replace the front passenger's lid whenever you remove the airbag from the panel.
  • Replace the airbag if the airbag mounting hooks or its housing is damaged.
