Passenger's Tray Lid Removal/Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the dashboard or its related parts.

Open the lid.
Remove the screws, then remove the passenger's upper tray lid (A).

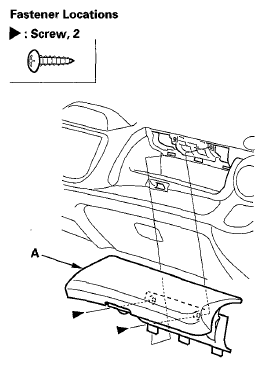

Fig 1: Identifying Passenger's Upper Tray Lid
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the lid in the reverse order of removal.
