Headlight Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the connectors (A) from the headlight (B).

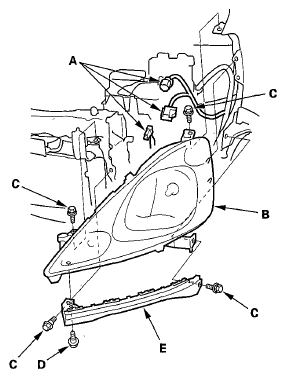

    Fig 1: Identifying Headlight & Connectors
    G05960016Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the four mounting bolts (C) from the headlight.
  4. Remove the bolt (D) and the front bumper upper beam (E).
  5. Install the parts in the reverse order of removal.
  6. After replacement, adjust the headlight (see HEADLIGHT ADJUSTMENT  ).
