Headlight Adjustment

Before adjusting the headlights:

• Park the vehicle on a level surface.
• Make sure the tire pressures are correct.
• The driver or someone who weighs the same should sit in the driver's seat.

1. Clean the outer lens so that you can see the center (A) of the headlights.

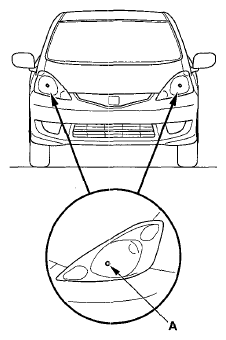

   Fig 1: Identifying Outer Lens Center Of Headlights

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Park the vehicle so that the center mark of the headlight (A) is 7.5 m (25 ft) away from a wall or screen (B).

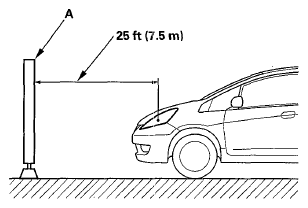

   Fig 2: Identifying Front Of Wall Screen Height

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Measure the height of the headlight's center mark (A), then on the wall or screen (B), mark the same height of the headlights with masking tape in a straight horizontal line (C).
   Fig 3: Measuring Height Of Headlight's Center Mark And Marking Same Height Of Headlights On Wall

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Turn on the low beam headlights.
5. To see if the headlights are adjusted properly, observe the beams of light projected on the wall or screen. The highest edge or "cut line" (A) of the headlights should be equal with the masking tape (B).
   NOTE: To help determine which headlight is out of adjustment, block one of the beams with a large piece of cardboard or equivalent, and observe the other beam on the wall or screen. Repeat this for the other headlight.

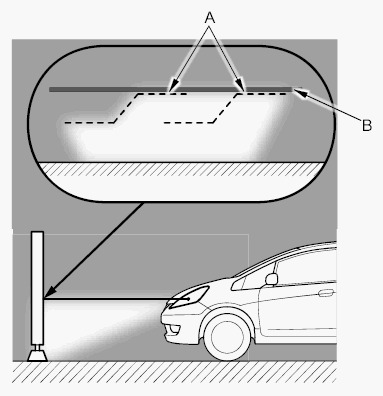

   Fig 4: Observing Beams Of Light Projected On The Wall Or Screen

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. If necessary, open the hood and adjust the headlights by turning the vertical adjuster (A).
   NOTE: The R and L adjusters are not applicable for U.S. models. The headlights can only be adjusted up and down.

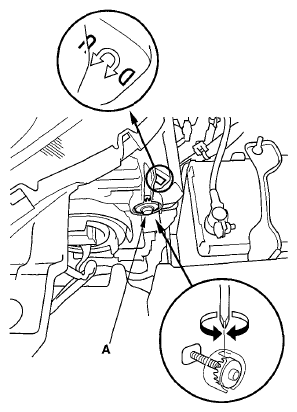

   Fig 5: Identifying Vertical Adjuster
