Front Bumper Removal/Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Have an assistant help you when removing and installing the front bumper.
Take care not to scratch the front bumper or the body.

Apply protective tape (A) to the front bumper (B) beside edges of both headlights (C). Make sure the protective tape covers the edge of the bumper as shown below.

Fig 1: Identifying Protective Tape, Front Bumper & Headlights
Courtesy of AMERICAN HONDA MOTOR CO., INC.

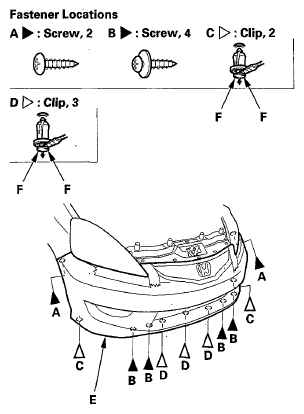

Remove the screws (A, B) and the clips (C, D) securing the front bumper (E).
NOTE: To release the clips, pry up on the center pin at the notch (F).

Fig 2: Identifying Fastener Location On Front Bumper
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull on the front bumper (A) at the wheel arch areas to release it from the hooks (B) on the side spacers (C).

Fig 3: Identifying Front Bumper, Side Spacers & Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With the help of an assistant, release the bumper from the hooks (A) on the upper beam (B).

Fig 4: Identifying Hooks & Upper Beam
Courtesy of AMERICAN HONDA MOTOR CO., INC.

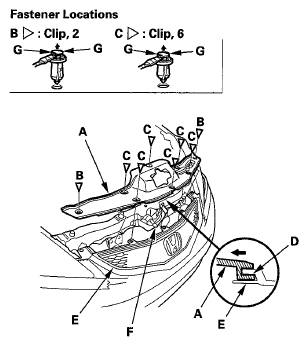

While holding the front bumper, remove the front grille cover (A).
1. Remove the clips (B, C).
2. While pulling the rear edge of the cover up, slide the entire cover rearward to release it from the groove (D) of the front grille (E).
3. Pass the hood latch handle (F) through the hole in the cover.
NOTE: To release the clips, pry up on the center pin at the notch (G).

Fig 5: Identifying Front Grille Cover, Clips, Groove & Hood Latch Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

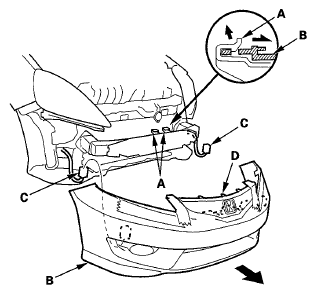

Release the hooks (A), and pull the front bumper (B) forward. Then hold the bumper, and disconnect the front fog light connectors (C), if equipped. Carefully remove the bumper.
NOTE: Have an assistant help you remove both sides of the bumper at the same time. This helps prevent scratches on the bumper or the body.

Fig 6: Identifying Front Bumper, Hooks & Front Fog Light Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

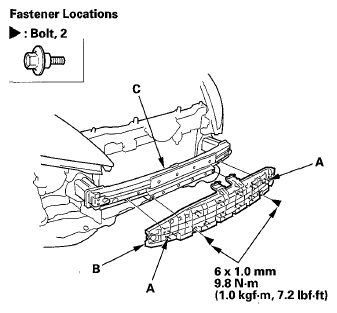

Remove the bolts and release the hooks (A), then remove the front bumper absorber (B) from the front bumper beam (C).

Fig 7: Front Bumper Absorber & Front Bumper Beam With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the bumper in the reverse order of removal, and note these items:
- If equipped, make sure the front fog light connectors are plugged in properly.
- Make sure the front bumper securely engages the hooks on both upper beams and both side spacers.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
