Drive Belt Auto-Tensioner Removal/Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt (see DRIVE BELT REMOVAL/INSTALLATION  ).
  2. Remove the auto-tensioner

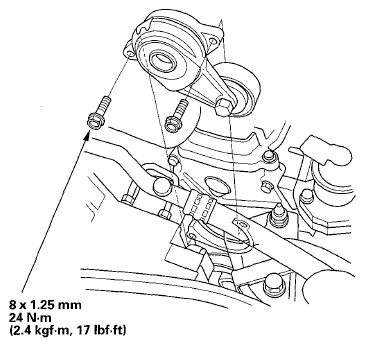

    Fig 1: Auto-Tensioner & Bolts With Torque Specifications
    G05952315Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the auto-tensioner in the reverse order of removal.
