Front Passenger's Seat

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: SRS components are located in this area. Review the SRS component locations COMPONENT LOCATION INDEX ), and precautions and procedures PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.
  1. Remove the front passenger's seat FRONT SEAT REMOVAL/INSTALLATION ).
  2. Disconnect the 5P connector (A) from the seat cushion heater.

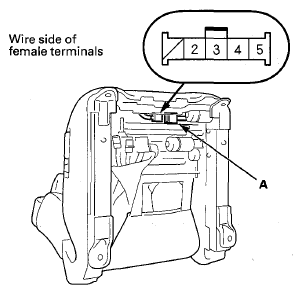

    Fig 1: Identifying 5P Connector Of Seat Cushion Heater
    G08053845Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between seat cushion heater 5P connector terminals No. 3 and No. 4. There should be continuity. If there is no continuity, replace the seat cushion heater FRONT SEAT CUSHION HEATER  ).
  4. Check for continuity between seat cushion heater 5P connector terminals No. 2 and No. 5. There should be continuity. If there is no continuity, replace the seat cushion heater FRONT SEAT CUSHION HEATER  ).
