Tailgate Adjustment

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

* Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:
  • Put on gloves to protect your hands.
  • Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
  1. Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
    NOTE: Open the tailgate by using the emergency lever while adjusting the tailgate (see TAILGATE LATCH REPLACEMENT  ).
  2. Remove the support strut from each side (see TAILGATE SUPPORT STRUT REPLACEMENT  ).

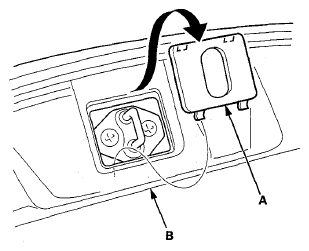

  3. Remove the striker cap (A) from the rear trim panel (B).
    Fig 1: Locating Striker Cap And Rear Trim Panel
    G08053591Courtesy of AMERICAN HONDA MOTOR CO., INC.

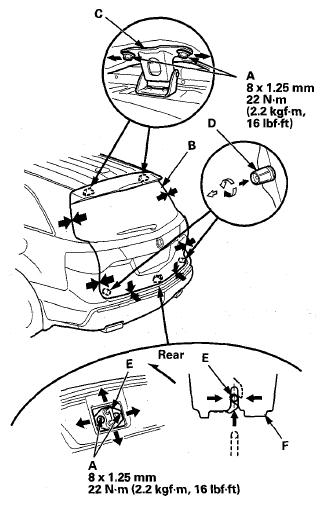

  4. Slightly loosen each bolt (A). C.
    Fig 2: Tailgate Alignment Adjust Sequence With Torque Specifications
    G08053592Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Adjust the tailgate (B) alignment in the following sequence:
    • Adjust the tailgate right and left by using the elongated holes in the tailgate hinges (C).
    • Turn the tailgate edge cushions (D), in or out as necessary, to make the tailgate fit flush with the body at the side edges.
    • Adjust the fit between the tailgate and tailgate opening by moving the striker (E), and adjust the striker right or left until it is centered in the tailgate latch (F).
  6. Tighten each bolt to the specified torque.
  7. Make sure the tailgate opens properly and locks securely.
  8. Reinstall the support struts securely.
  9. Apply touch-up paint to the hinge mounting bolts and around the hinges, and let the paint dry.

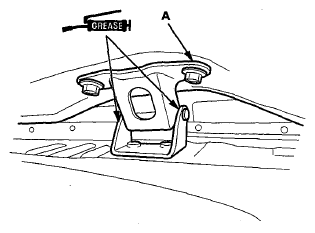

  10. Apply multipurpose grease to the pivot area of the tailgate hinges (A) as indicated by the arrows.
    Fig 3: Locating Tailgate Hinges Pivot Area Grease Applying Area
    G08053593Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Reinstall all of the removed parts.
  12. Do the battery terminal reconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
NOTE: Check for any DTCs that may have been set during repairs, and clear them.
