Tailgate Support Strut Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Have an assistant help you when removing and installing the hood support strut.
Use eye protection when prying the support strut clips.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Pry the support strut clips (A) with a flat-tip screwdriver from each end of the support strut (B), then release the support strut from the pivot bolt (C) and the pivot bracket (D). If necessary, remove the pivot bolts from the tailgate.
NOTE: Do not remove the clips from the support strut.

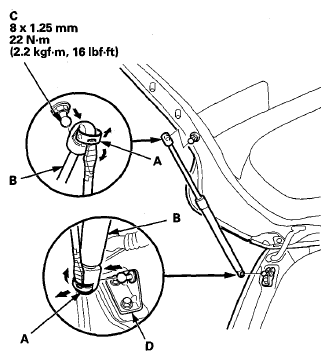

Fig 1: Support Strut Clips With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then remove the pivot bracket (A).

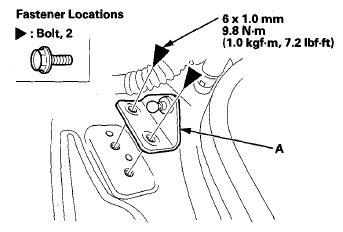

Fig 2: Locating Bolts And Pivot Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the pivot bracket.
Set the support strut clips (A) on the original position, then reattach the support strut (B) on the pivot bolt (C) and the pivot bracket (D) by pushing the support strut onto the pivot.

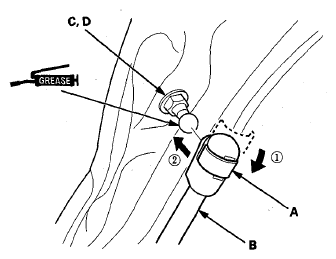

Fig 3: Setting Support Strut Clips On Original Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
