Tailgate Latch Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Put on gloves to protect your hands.

If the tailgate latch can't be unlocked by using the keyless entry transmitter or the inside/outside tailgate switches, remove the maintenance lid (A) from the tailgate lower trim panel, then turn the emergency lever (B) clockwise as shown.

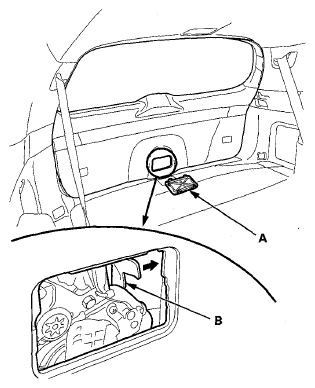

Fig 1: Locating Maintenance Lid And Emergency Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
NOTE: If you remove the tailgate latch while the negative battery cable is still connected, the vehicle goes into the failsafe mode.
Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Disconnect the tailgate latch connector (A) and the actuator connector (B).

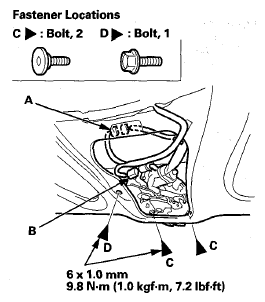

Fig 2: Locating Tailgate Latch And Actuator Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (C, D).
Pull the tailgate latch (E) out, then remove it.

Fig 3: Locating Tailgate Latch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the latch in the reverse order of removal, and note these items:
- Make sure the connectors are plugged in properly.
- Do the battery terminal reconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
- Check for any DTCs that may have been set during repairs, and clear them.
- Make sure the tailgate opens properly and locks securely.
