RES power will not turn off
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Check the vehicle battery condition first BATTERY TEST ).
- Check the connectors for poor connections or loose terminals.
- Turn the ignition switch to ON (II), then press the REAR PWR button ON.
Does the screen open?
YES -Go to step 2.
NO -Go to RES power will not turn on
- Push the rear power button of the wireless remote control.
Does the screen close and turn off?
YES -Intermittent failure, the system is OK at this time.
NO -Go to step 3.
- Turn the ignition switch to LOCK (0).
Does the screen close and turn off?
YES -Go to Wireless remote control does not work (all buttons)
NO -Go to step 4.

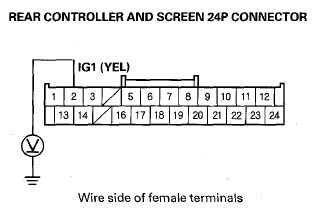

- Measure the voltage between rear controller and screen 24P connector terminal No. 2 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there battery voltage?
YES -Check for short to power on the YEL wire.
NO -Substitute a known-good rear controller and screen , and recheck. If the symptom/indication goes away, replace the original rear controller and screen .
