Rear Controller and Screen Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the headliner and display cover.

Remove the wireless remote control.
Remove the display cover (A).

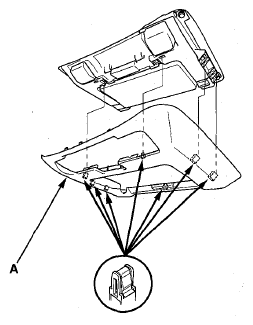

Fig 1: Identifying Display Cover Of Rear Controller
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector (A).

Fig 2: Identifying Connector On Rear Controller
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the edge of the headliner down.
Remove the mounting bolts. Pull the rear controller (B) forward, under the headliner to release the hooks, then pull the rear controller back and down to remove.
Install the screen in the reverse order of removal, and make sure the rear controller and screen connector are plugged in properly.
