Front Seat Cushion Cover Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program, 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

NOTE:

Put on gloves to protect your hands.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Take care not to tear the seams of damage the seat covers.

Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Remove the seat-back (see FRONT SEAT DISASSEMBLY/REASSEMBLY ).

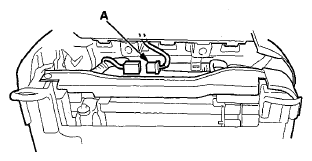

From under the seat cushion, disconnect the seat cushion heater connector (A).

Fig 1: Identifying Seat Cushion Heater Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the clips and the wire tie (A) and release the hook strips (B) from both sides of the seat cushion.
Outside

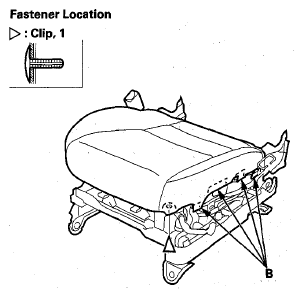

Fig 2: Identifying Seat Cushion, Wire Tie, Hook Strips And Clips (Outside)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Inside

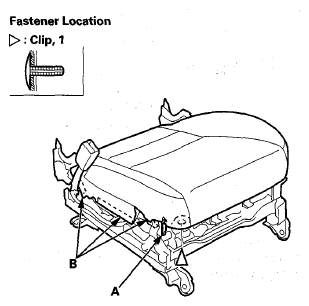

Fig 3: Identifying Seat Cushion, Wire Tie, Hook Strips And Clips (Inside)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With seat ventilation: Detach the hooks (A), then release the seat cushion ventilation blower motor duct (B).

Fig 4: Identifying Seat Cushion Ventilation Blower Motor Duct And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
From under the seat cushion, release the hook strips (C), then pull back the seat cushion cover (D).

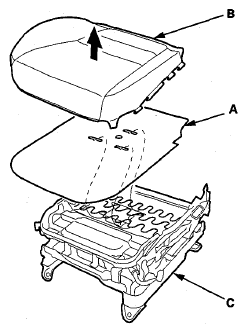

Remove the silencer (A) and the seat cushion pad (B) from the seat cushion frame (C).

Fig 5: Removing Silencer And Seat Cushion Pad From Seat Cushion Frame
Courtesy of AMERICAN HONDA MOTOR CO., INC.

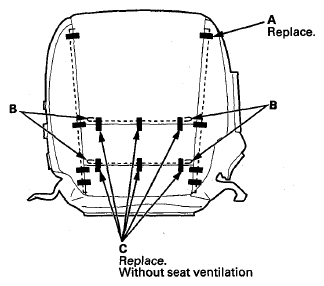

Pull back the edge of the seat cushion cover all the way around, and release the upholstery rings (A, C), the hooks (B) (with seat ventilation), then remove the seat cushion cover.

Fig 6: Identifying Seat Cushion Cover, Upholstery Rings And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- To prevent wrinkles when installing a seat cushion cover, make sure the material is stretched evenly over the pad before securing the clips and the hook strips.
- Replace all of the upholstery rings (A) fastening the seat cushion cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).

  Fig 7: Installing Upholstery Rings Seat Cushion Cover To Pad Wires
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
