Front Seat Disassembly/Reassembly

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

* Available through the Acura Tool and Equipment Program, 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Do the ODS unit initialization (see ODS UNIT INITIALIZATION ) after front passenger's seat replacement.

NOTE:

Put on gloves to protect your hands.
Take care not to tear the seams or damage the seat covers.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
DTCs will set if the ignition is turned ON (II) with the seats removed.

Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).

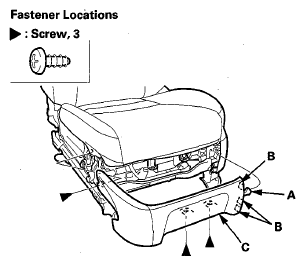

Remove the screws and release the hook (A) and the tabs (B), then remove the front cover (C).

Fig 1: Identifying Front Cover, Hook, Tabs And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

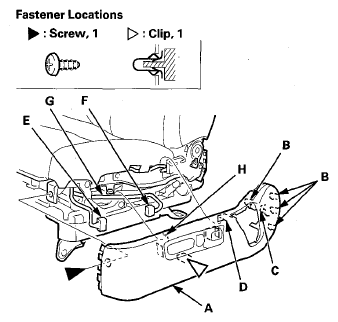

Remove the recline cover (A).
1. Remove the screw and detach the clip and the hooks (B).
2. Pull up the cover, then detach the hooks (C, D).
3. Disconnect the recline switch and the up-down switch connector (E), and on the driver's seat, lumbar support switch connector (F).
4. Remove the wire harness (G) from the hook (H).

  Fig 2: Identifying Recline Cover And Hooks
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

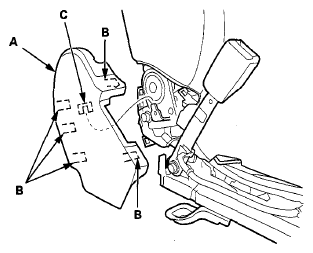

Remove the center cover (A).
1. Release the hooks (B).
2. Pull up the cover, then detach the hook (C).

  Fig 3: Identifying Center Cover And Hooks
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

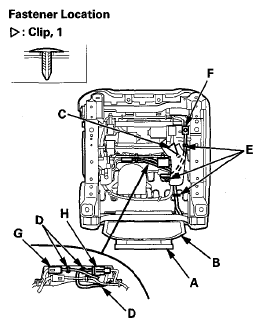

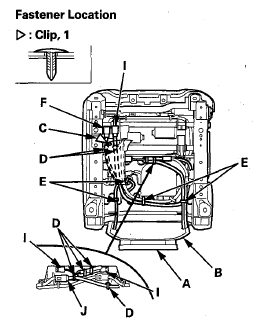

From under the seat cushion, release the hook strips (A) and pull the seat cushion cover (B) back. Detach the clip fastening the harness sock (C). Disconnect or detach the connectors, detach the harness clips (D), release the wire ties (E), then pull out the harness(es) out through the harness sock.
- Driver's seat
  - Side airbag connector (F)
  - Seat-back heater harness connector (G)
  - Recline motor/lumbar support motor harness connector (H)
- Passenger's seat
  - Side airbag connector (F)
  - ODS unit harness connector (I)
  - Recline motor harness connector (J)
Driver's seat

Fig 4: Identifying Driver's Seat, Hook Strips, Seat Cushion Cover And Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Passenger's seat

Fig 5: Identifying Passenger's Seat, Hook Strips, Seat Cushion Cover And Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.

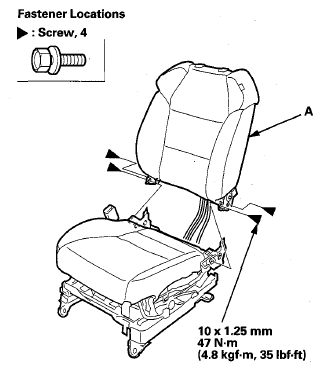

Remove bolts, then remove the seat-back (A).

Fig 6: Seat-Back With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Assemble the seat-back and seat cushion in the reverse order of disassembly, and note these items:
- If the clips are damaged, replace them with new ones.
- Push the clip and the hooks on the covers into place securely.
- Apply multipurpose grease to the moving parts of the seat track.
- Replace the wire ties you removed with new ones.
- Make sure each connector is plugged in properly.
- To prevent wrinkles in the seat cushion cover, stretch the material evenly over the pad before securing the hook strips.
