Lower Transmission Mount Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ) and the front undercover (see FRONT UNDERCOVER REPLACEMENT ).
  2. Lift and support the engine with a jack and a wood block under the transmission.
  3. Remove the lower transmission mount mounting bolts (A).

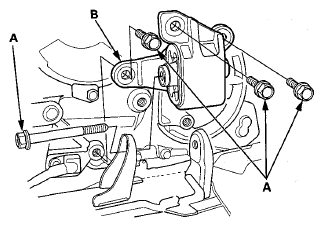

    Fig 1: Locating Lower Transmission Mount Mounting Bolts
    G08052098Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the lower transmission mount (B).
