Front Undercover Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the bolts (A), and the clips (B), then remove the front undercover (C) from the splash shield (D), the front suspension subframe (E), and the front subframe stiffener (F).

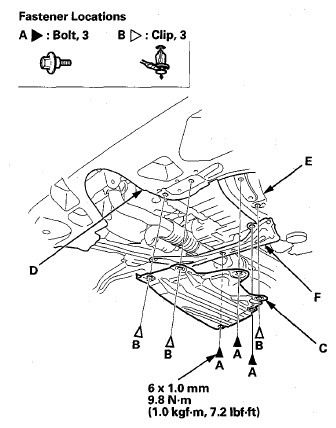

Fig 1: Locating Front Undercover, Bolts And Clips With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the undercover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
