Lower Transmission Mount Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Install the lower transmission mount (A), then tighten the lower transmission mount mounting bolts (B).

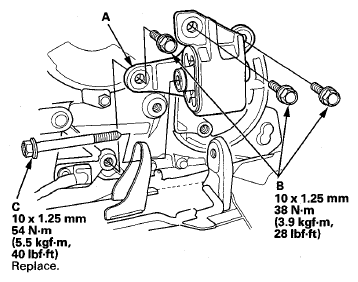

Fig 1: Locating Lower Transmission Mount And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosely install the new lower transmission mount mounting bolt (C).
Remove the jack and the wood block.
Tighten the lower transmission mount mounting bolt.
Install the splash shield (see SPLASH SHIELD REPLACEMENT ) and the front undercover (see FRONT UNDERCOVER REPLACEMENT ).
