1. Check Before Engine Is Started

1. Park vehicle on flat surface.
2. Move selector lever to P position.
3. Turn ignition switch to OFF position. Wait at least 5 seconds.
4. Turn ignition switch to ON position. (Do not start engine.)
5. Does A/T check (position) indicator lamp come on for about 2 seconds?

Yes or No

1. Yes: GO TO 2.
2. No: Stop ROAD TEST. Go to "1. A/T CHECK (POSITION) INDICATOR LAMP DOES NOT COME ON ".

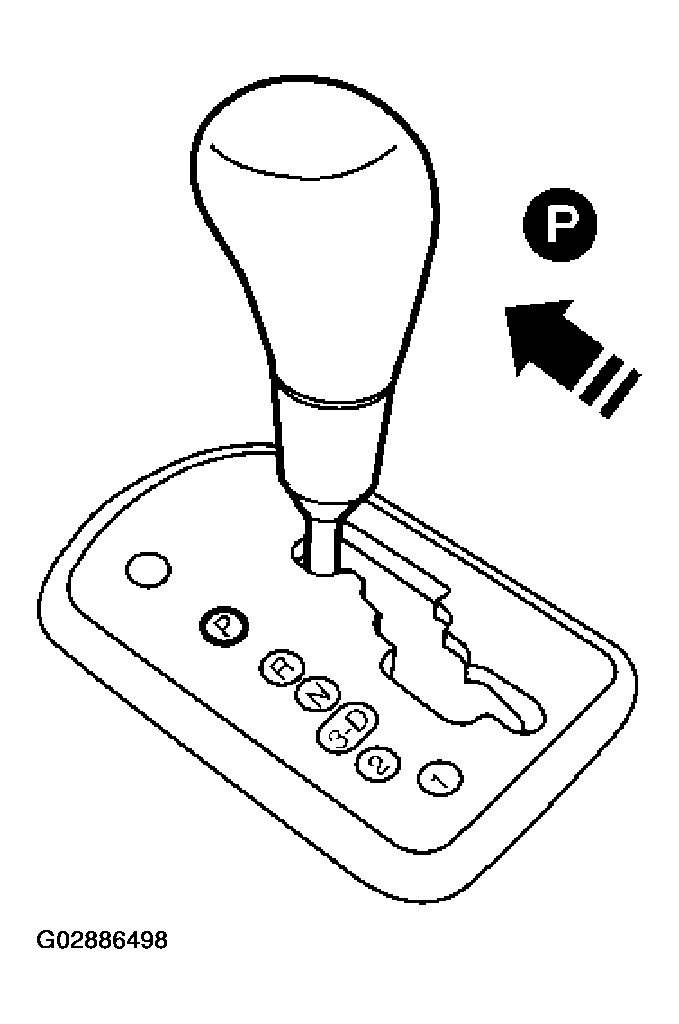

   Fig 1: Moving Selector Lever To P Position

   Courtesy of NISSAN MOTOR CO., U.S.A.

Does A/T check (position) OFF indicator lamp flicker for about 8 seconds?

Yes or No

1. Yes: Perform self-diagnosis and check NG items on the DIAGNOSTIC WORKSHEET  . Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".
2. No: GO TO NEXT STEP.
   1. Turn ignition switch to OFF position.
   2. Perform self-diagnosis and note NG items.

      Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".

   3. Go to "2. CHECK AT IDLE ".

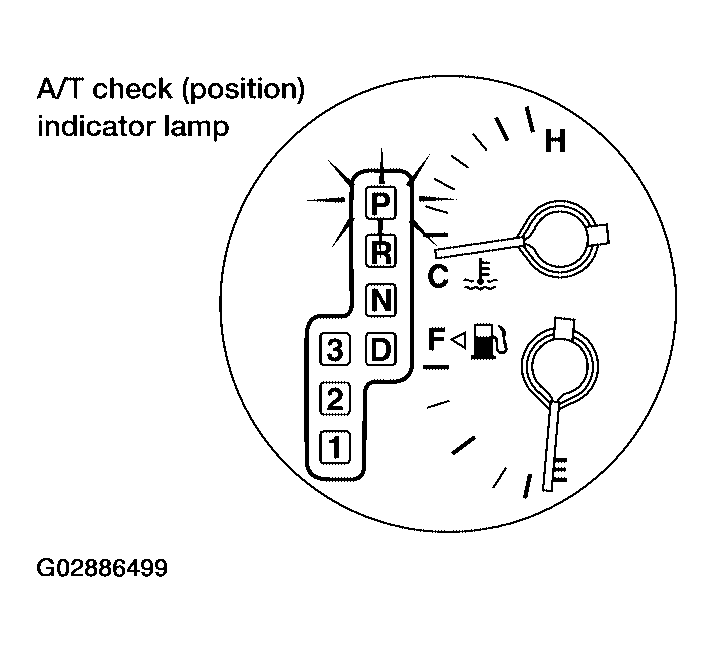

      Fig 2: A/T Check (Position) Indicator Lamp

      Courtesy of NISSAN MOTOR CO., U.S.A.
