1. A/T Check (Position) Indicator Lamp Does Not Come On

SYMPTOM:

A/T check (position) indicator lamp does not come on for about 2 seconds when turning ignition switch to ON.

1. CHECK TCM POWER SOURCE
   1. Turn ignition switch to ON position.

      (Do not start engine.)

   2. Check voltage between TCM terminals 10 (R/Y), 19 (R/Y), and 28 (Y/R) and ground.

      Voltage: Battery voltage

   OK or NG

   1. OK: GO TO 2.
   2. NG: GO TO  3.

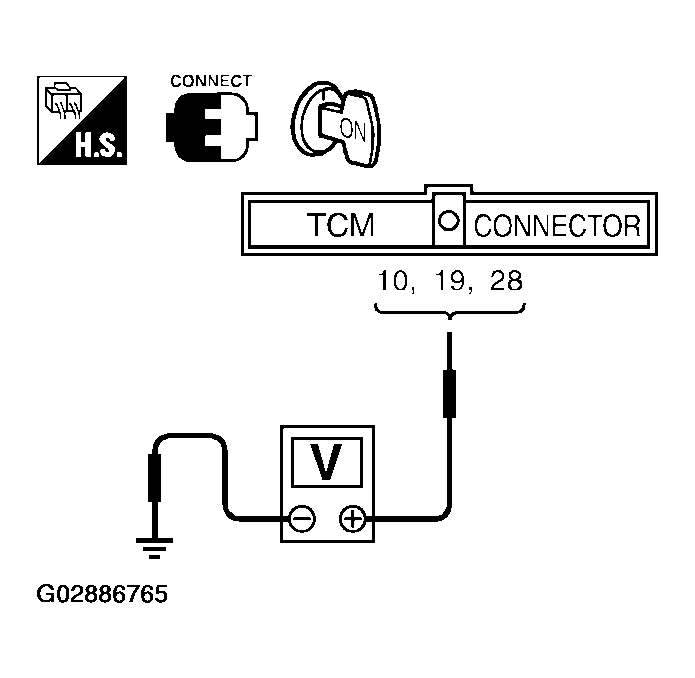

      Fig 1: TCM Terminals 10 & 28 & Ground Voltage Test

      Courtesy of NISSAN MOTOR CO., U.S.A.
2. CHECK POWER SOURCE STEP 2
   1. Turn ignition switch to OFF position.
   2. Check voltage between TCM terminal 28 (Y/R) and ground.

      Voltage: Battery voltage

   OK or NG

   1. OK: GO TO  4.
   2. NG: GO TO 3.

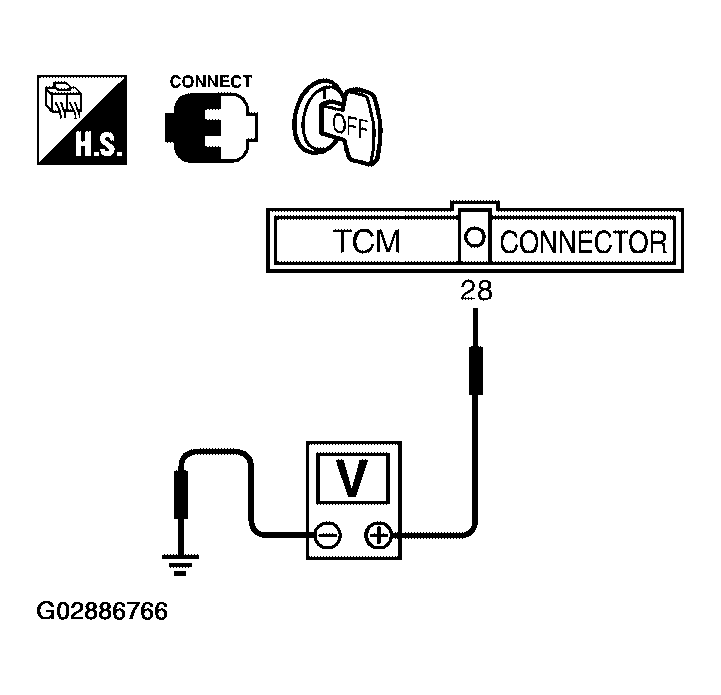

      Fig 2: TCM Terminal 28 & Ground Voltage Test

      Courtesy of NISSAN MOTOR CO., U.S.A.
3. DETECT MALFUNCTIONING ITEM

   Check the following items:

   • Harness for short or open between ignition switch and TCM (Main harness)

     Refer to "WIRING DIAGRAM - AT - MAIN ".

   • Ignition switch and fuse

     Refer to "POWER SUPPLY ROUTING CIRCUIT ".

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace damaged parts.
4. CHECK TCM GROUND CIRCUIT
   1. Turn ignition switch to OFF position.
   2. Disconnect TCM harness connector.
   3. Check continuity between TCM harness connector terminals 25, 48 and ground.

      Continuity should exist.

   OK or NG

   1. OK: GO TO 5.
   2. NG: Repair open circuit or short to ground or short to power in harness or connectors. Refer to "WIRING DIAGRAM - AT - MAIN ".

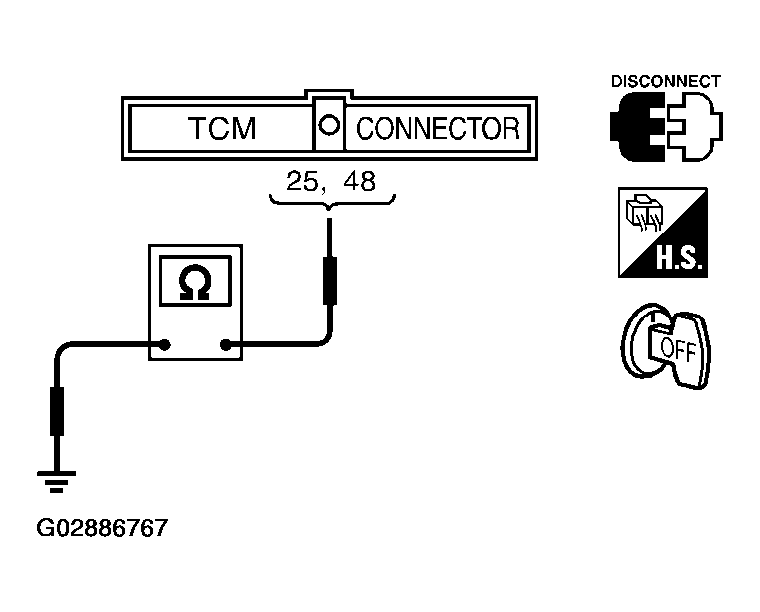

      Fig 3: TCM Harness Connector Terminals 25, 48 & Ground Continuity Test

      Courtesy of NISSAN MOTOR CO., U.S.A.
5. DETECT MALFUNCTIONING ITEM

   Check the following items:

   • Harness and fuse for short or open between ignition switch and A/T check (position) indicator lamp (Main harness)

     Refer to "POWER SUPPLY ROUTING CIRCUIT ".

   • Harness for short or open between A/T check (position) indicator lamp and TCM

   OK or NG

   1. OK: GO TO 6.
   2. NG: Repair or replace damaged parts.
6. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 8.
7. CHECK TCM INSPECTION
   1. Perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
