TCM Self-Diagnostic Procedure (No Tools)

WARNING: This page is about a different variant/trim than selected.

CHECK A/T CHECK (POSITION) INDICATOR LAMP
1. Move selector lever to P position.
  Start engine and warm it up to normal engine operating temperature.
2. Turn ignition switch to OFF position.
3. Wait 5 seconds.
4. Turn ignition switch to ON position. (Do not start engine.)

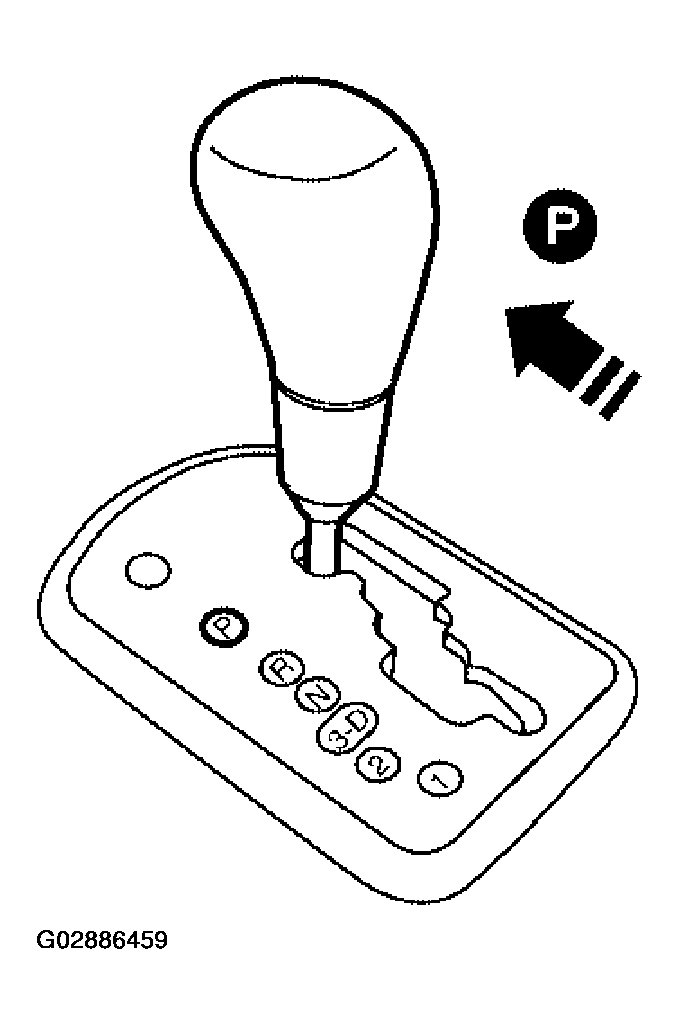

  Fig 1: Moving Selector Lever To P Position
  Courtesy of NISSAN MOTOR CO., U.S.A.
5. Does A/T check (position) indicator lamp come on for about 2 seconds?
  Yes or No
  1. Yes: GO TO 2.
  2. No: Stop procedure. Perform "1. A/T CHECK (POSITION) INDICATOR LAMP DOES NOT COME ON " before proceeding.

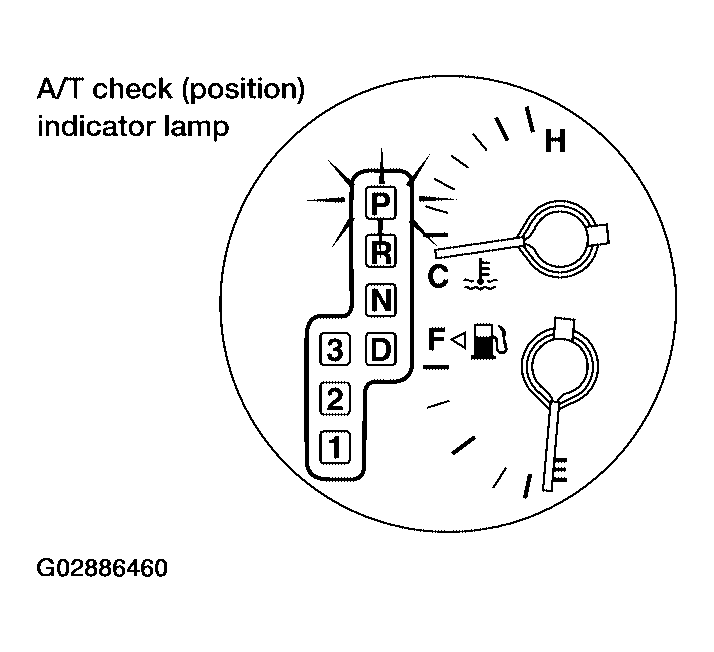

    Fig 2: A/T Check (Position) Indicator
    Courtesy of NISSAN MOTOR CO., U.S.A.
6. JUDGEMENT PROCEDURE STEP 1
  1. Turn ignition switch to OFF position.
  2. Turn ignition switch to ON position. (Do not start engine.)
  3. Depress the brake pedal, then move gear selector lever from P to D position.
  4. Wait 3 seconds.

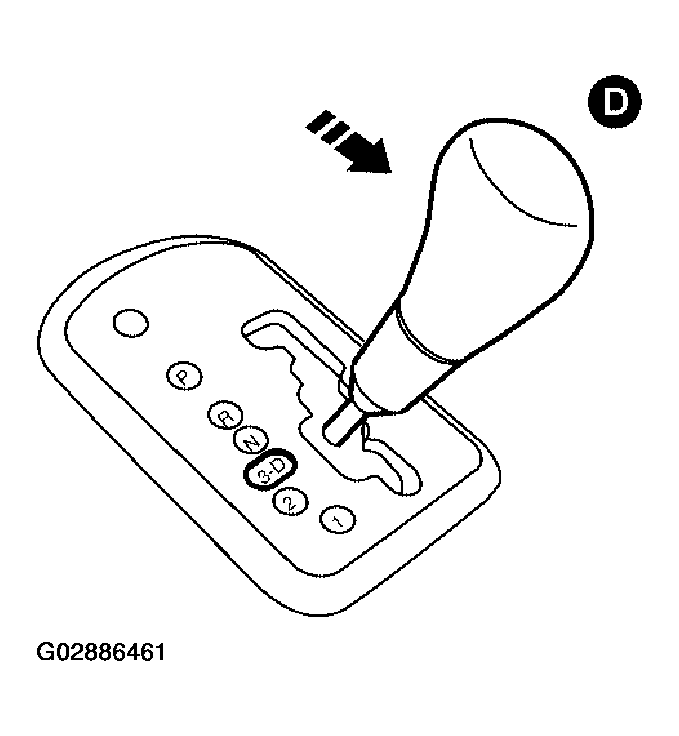

    Fig 3: Moving Gear Selector Lever From P To D Position
    Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Move selector lever to 2 position.
  6. Release brake pedal.

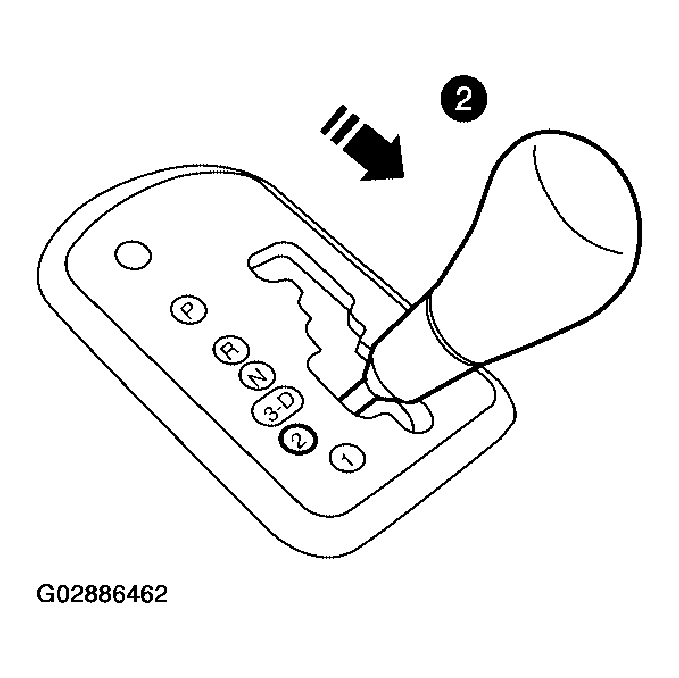

    Fig 4: Moving Selector Lever To 2 Position
    Courtesy of NISSAN MOTOR CO., U.S.A.

    : GO TO 3.
7. JUDGEMENT PROCEDURE STEP 2
  1. Move selector lever to 1 position.
  2. Depress brake pedal.
  3. Depress accelerator pedal fully and release it.
  4. The A/T check (position) indicator lamp will begin to flash.
    : GO TO 4.

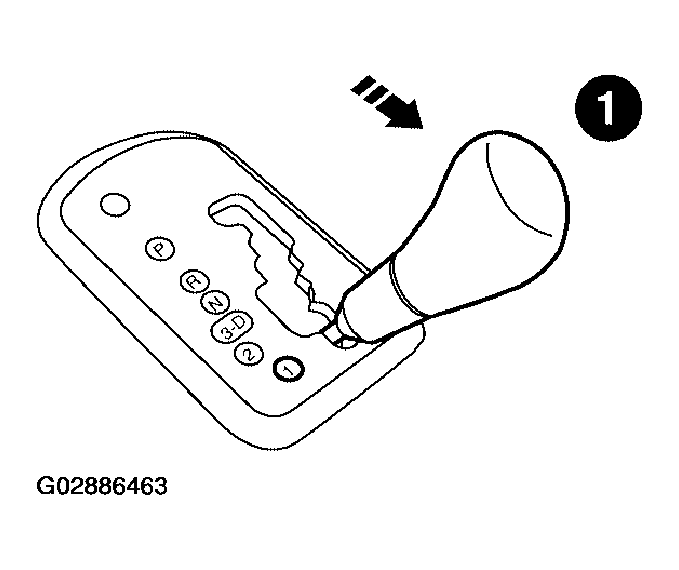

    Fig 5: Moving Selector Lever To 1 Position
    Courtesy of NISSAN MOTOR CO., U.S.A.
8. CHECK SELF-DIAGNOSTIC CODE
  Check A/T check (position) indicator lamp.

  Refer to "JUDGEMENT OF SELF-DIAGNOSIS CODE ".
  1. :DIAGNOSIS END
  Fig 6: A/T Check (Position) Indicator Lamp
  Courtesy of NISSAN MOTOR CO., U.S.A.
