Judgement Of Self-Diagnosis Code

WARNING: This page is about a different variant/trim than selected.

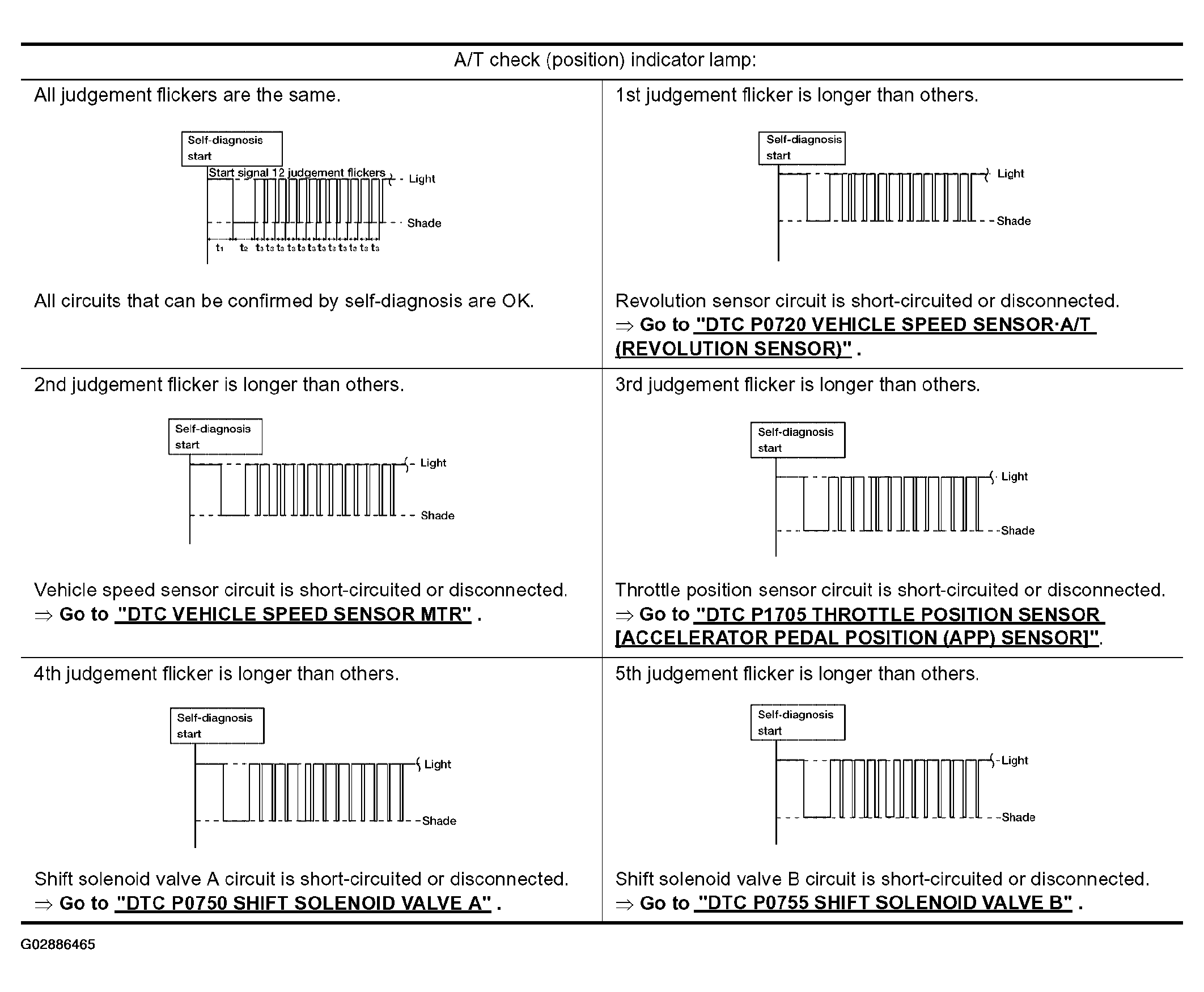

Fig 1: Judgement Of Self-Diagnosis Code Specifications Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

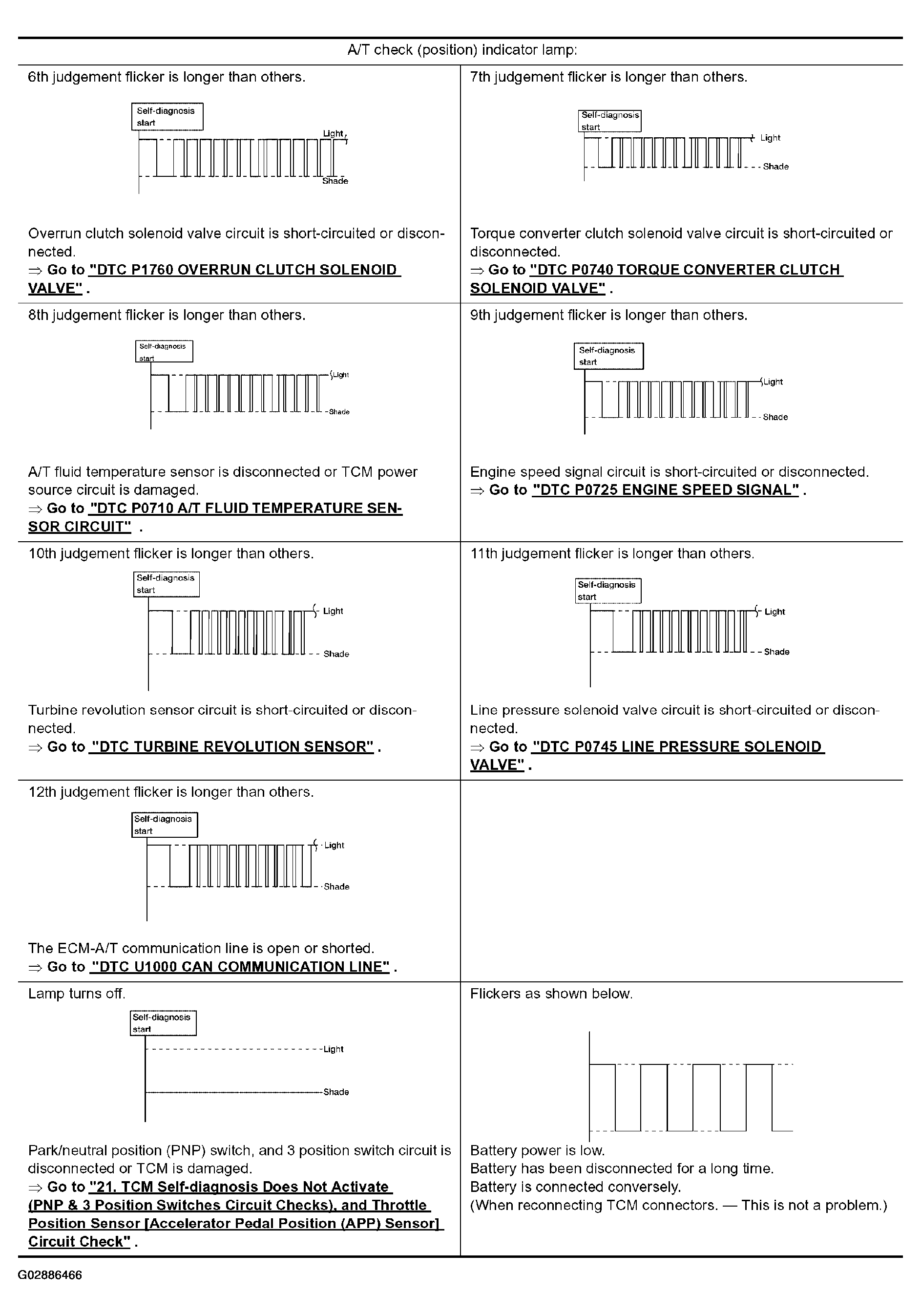

Fig 2: Judgement Of Self-Diagnosis Code Specifications Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

t₁ = 2.5 seconds t₂ = 2.0 seconds t₃ = 1.0 second t₄ = 1.0 second
